Description

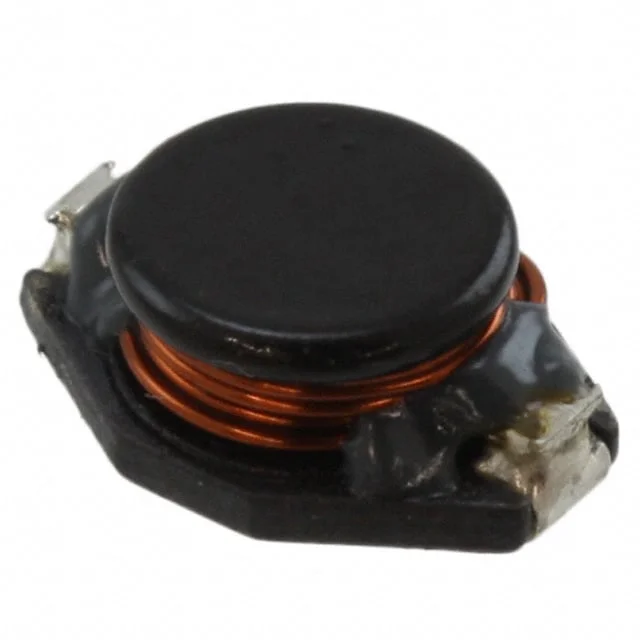

FIXED IND 3.3UH 5.4A 15 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for UP2UC-3R3-R.
UP2UC-3R3-R has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
UP2UC-3R3-R is rated for 5.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
UP2UC-3R3-R lists a DC resistance of 15mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
UP2UC-3R3-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from UP2UC-3R3-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 5.4 A |
| DC Resistance (DCR) | 15mOhm Max |
| Saturation Current | 6.4A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 3.3UH 5.4A 15 MOHM SMD |
| Series | UNI-PAC™ 2UC |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | - |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 65MHz |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.205" (5.21mm) |
| Features | - |
