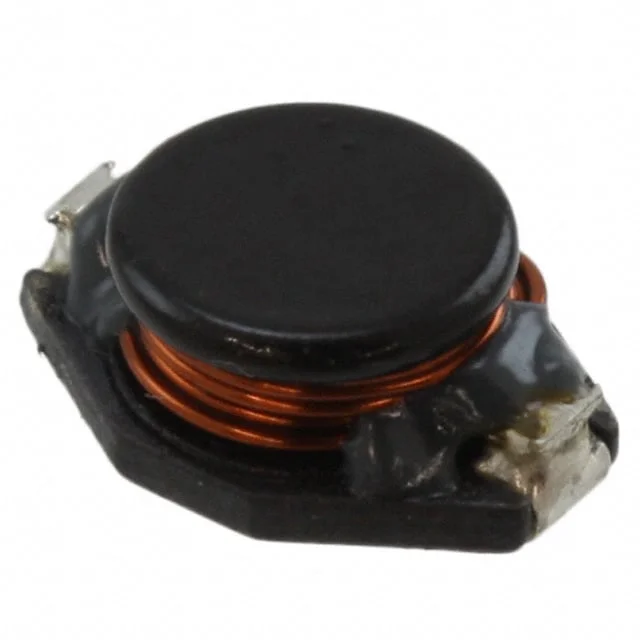

Description
FIXED IND 47UH 1.8A 140 MOHM SMD
Specifications
Inductance
47 µH
Current Rating
1.8 A
DC Resistance (DCR)
140mOhm Max
Dimensions
0.500" L x 0.394" W (12.70mm x 10.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 140mOhm Max |
| saturationCurrent | 1.6A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 47UH 1.8A 140 MOHM SMD |
| Series | UNI-PAC™ 2UC |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 12MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.205" (5.21mm) |
| features | - |
