Description

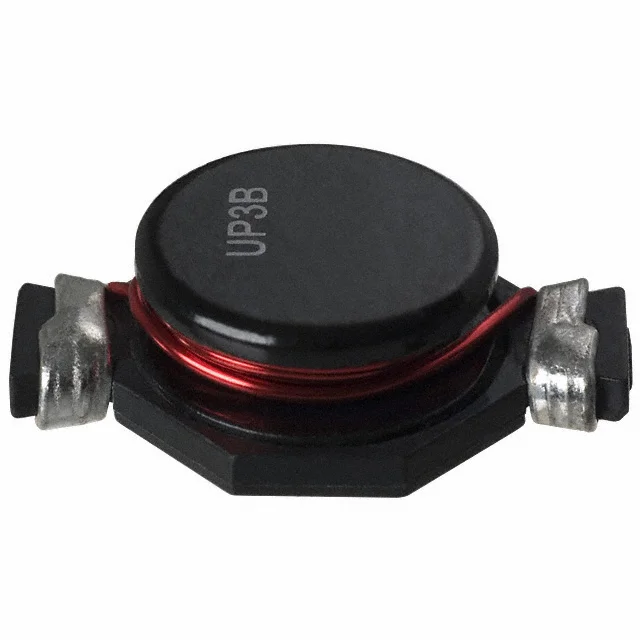

FIXED IND 1UH 12.5A 3.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for UP3B-1R0-R.
UP3B-1R0-R has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
UP3B-1R0-R is rated for 12.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
UP3B-1R0-R lists a DC resistance of 3.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
UP3B-1R0-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from UP3B-1R0-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 12.5 A |
| DC Resistance (DCR) | 3.4mOhm Max |
| Saturation Current | 15.3A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.760" L x 0.520" W (19.30mm x 13.21mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1UH 12.5A 3.4 MOHM SMD |
| Series | UNI-PAC™ |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.268" (6.80mm) |
