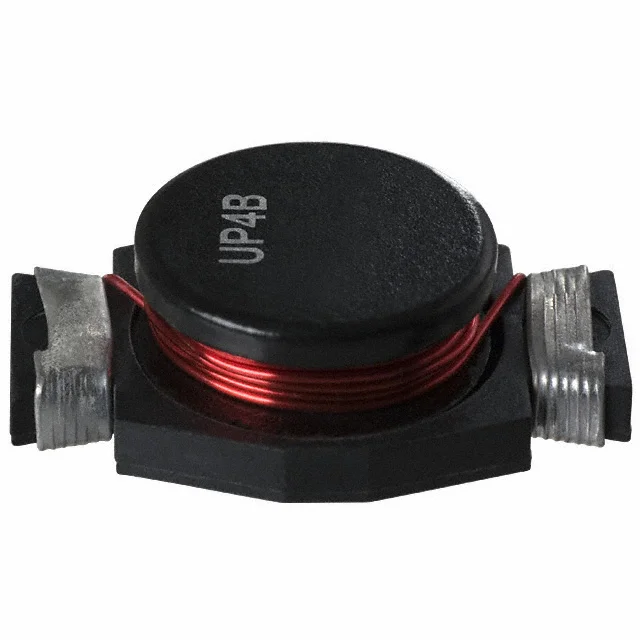

FIXED IND 68UH 2.4A 120 MOHM SMD
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 120mOhm Max |
| saturationCurrent | 4.3A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.870" L x 0.591" W (22.10mm x 15.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 68UH 2.4A 120 MOHM SMD |
| Series | UNI-PAC™ |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.310" (7.87mm) |
| features | - |
