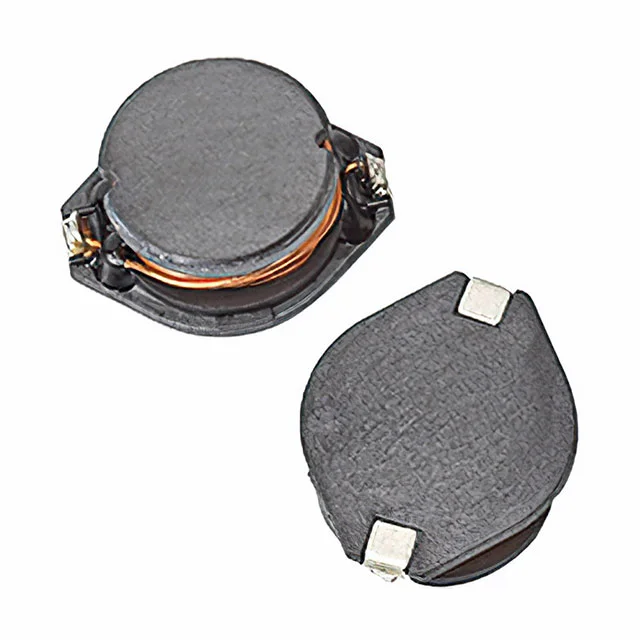

FIXED IND 220UH 1.2A 380 MOHM
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 380mOhm Max |
| saturationCurrent | 2.4A |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.724" L x 0.591" W (18.40mm x 15.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 220UH 1.2A 380 MOHM |
| Series | UNI-PAC™ 5 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 3.7MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.295" (7.50mm) |
| features | - |
