Description

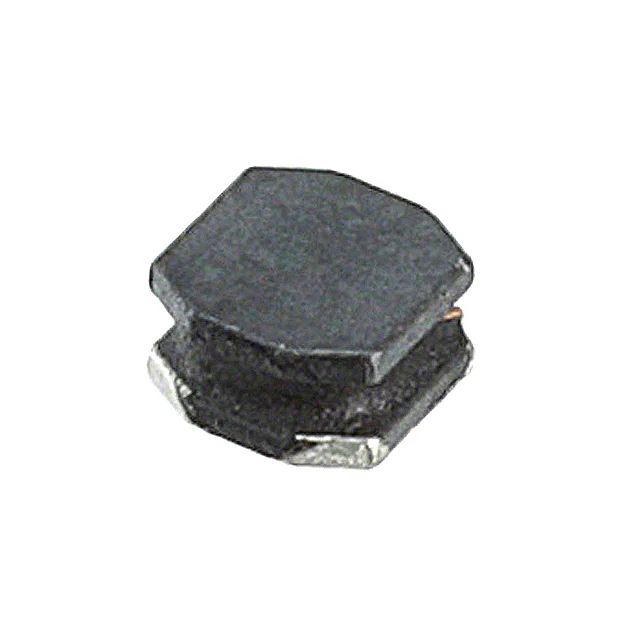

FIXED IND 680NH 1.7A 66 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLS2012ET-R68N.
VLS2012ET-R68N has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLS2012ET-R68N is rated for 1.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLS2012ET-R68N lists a DC resistance of 66mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLS2012ET-R68N uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLS2012ET-R68N to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±30% |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 66mOhm Max |
| Saturation Current | 1.7A |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 680NH 1.7A 66 MOHM SMD |
| Series | VLS |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
