Description

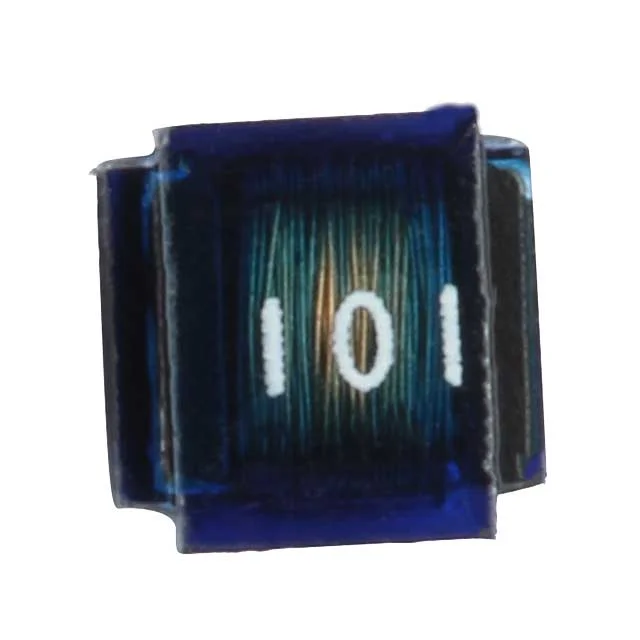

FIXED IND 6.8UH 175MA 2 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for WCL2520-6R8-R.
WCL2520-6R8-R has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
WCL2520-6R8-R is rated for 175 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
WCL2520-6R8-R lists a DC resistance of 2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
WCL2520-6R8-R uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from WCL2520-6R8-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 µH |
| Tolerance | ±5% |
| Current Rating | 175 mA |
| DC Resistance (DCR) | 2Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 6.8UH 175MA 2 OHM SMD |
| Series | WCL2520 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 12 @ 7.96MHz |
| Self Resonant Frequency | 35MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.083" (2.10mm) |
