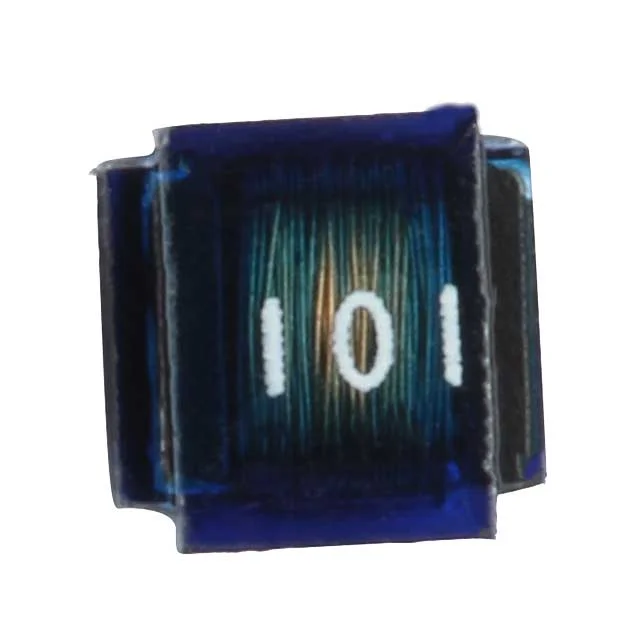

FIXED IND 680NH 600MA 450 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for WCL2520-R680-R.
WCL2520-R680-R has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
WCL2520-R680-R is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
WCL2520-R680-R lists a DC resistance of 450mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
WCL2520-R680-R uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from WCL2520-R680-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±5% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 450mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 680NH 600MA 450 MOHM |
| Series | WCL2520 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 12 @ 25.2MHz |
| Self Resonant Frequency | 330MHz |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.083" (2.10mm) |
