Description

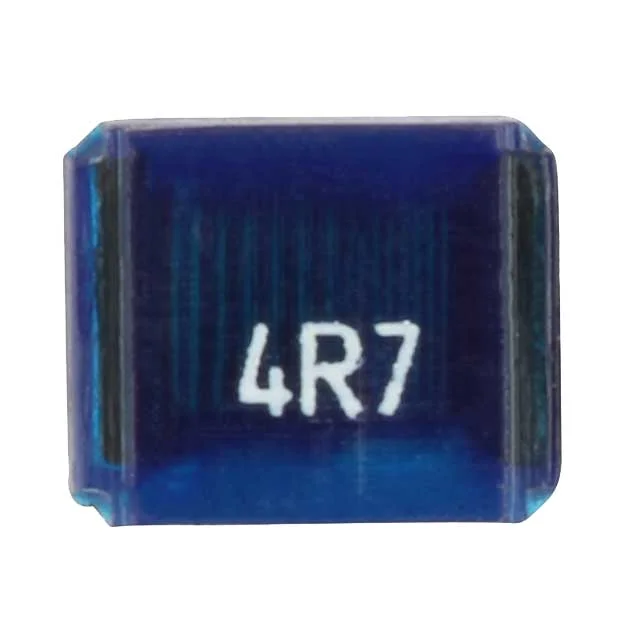

FIXED IND 56UH 125MA 5.6 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for WCL3225-560-R.
WCL3225-560-R has an inductance value of 56 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
WCL3225-560-R is rated for 125 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
WCL3225-560-R lists a DC resistance of 5.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
WCL3225-560-R uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from WCL3225-560-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 µH |
| Tolerance | ±5% |
| Current Rating | 125 mA |
| DC Resistance (DCR) | 5.6Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.138" L x 0.114" W (3.50mm x 2.90mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 56UH 125MA 5.6 OHM SMD |
| Series | WCL3225 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 10 @ 2.52MHz |
| Self Resonant Frequency | 8MHz |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.089" (2.25mm) |
