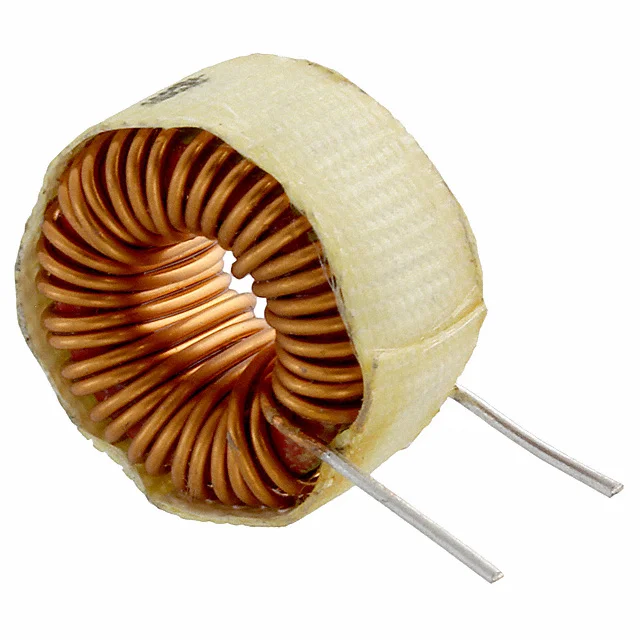

FIXED IND 800NH 22.1A 1.4 MOHM
| Inductance | 800 nH |
| Tolerance | ±20% |
| Current Rating | 22.1 A |
| DC Resistance (DCR) | 1.4mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 800NH 22.1A 1.4 MOHM |
| Series | 2000 |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
