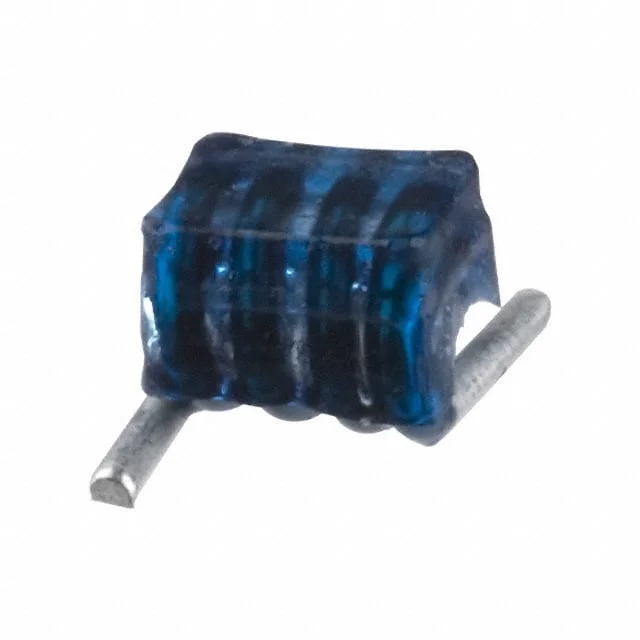

FIXED IND 2.5NH 3A SURFACE MOUNT
| Inductance | 2.5 nH |
| Tolerance | ±10% |
| Current Rating | 3 A |
| DC Resistance (DCR) | - |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 2.5NH 3A SURFACE MOUNT |
| Series | 4426 |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 145 @ 150MHz |
| selfResonantFreq | 3GHz |
| ratings | - |
| testFrequency | 150 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.125" (3.18mm) |
| features | - |
