Description

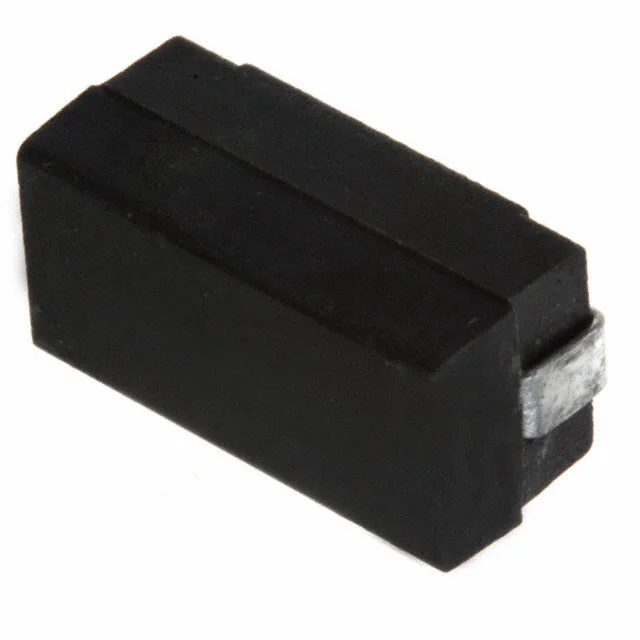

FIXED IND 750NH 1.425A 180 MOHM
Specifications
Inductance
750 nH
Current Rating
1.425 A
DC Resistance (DCR)
180mOhm Max
Dimensions
0.520" L x 0.250" W (13.21mm x 6.35mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 750 nH |
| Tolerance | ±3% |
| Current Rating | 1.425 A |
| DC Resistance (DCR) | 180mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 750NH 1.425A 180 MOHM |
| Series | 5022 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Phenolic |
| shielding | Unshielded |
| qFactor | 50 @ 25MHz |
| selfResonantFreq | 230MHz |
| ratings | - |
| testFrequency | 25 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.230" (5.84mm) |
