Description

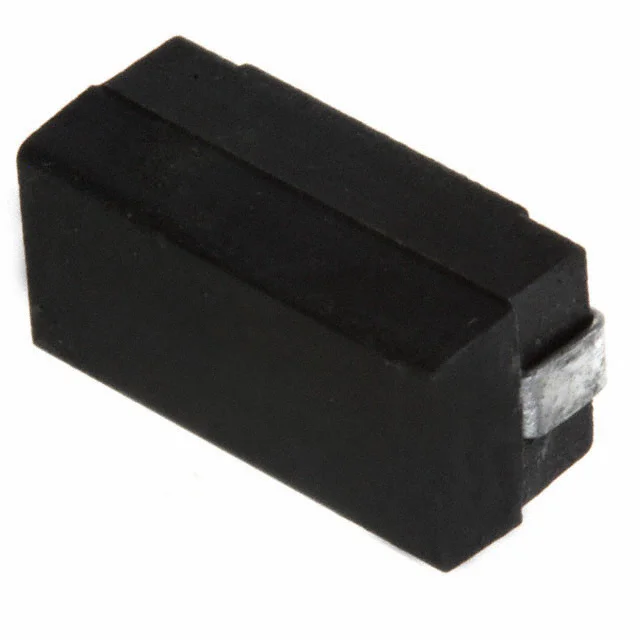

FIXED IND 680NH 1.555A 150 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022R-681H.
5022R-681H has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022R-681H is rated for 1.555 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022R-681H lists a DC resistance of 150mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022R-681H uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022R-681H to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±3% |
| Current Rating | 1.555 A |
| DC Resistance (DCR) | 150mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 680NH 1.555A 150 MOHM |
| Series | 5022R |
| Product Status | Active |
| Core Material | Phenolic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 25MHz |
| Self Resonant Frequency | 250MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Features | https://www.digikey.com/en/products/detail/delevan/5022R-681H/4201061 |
