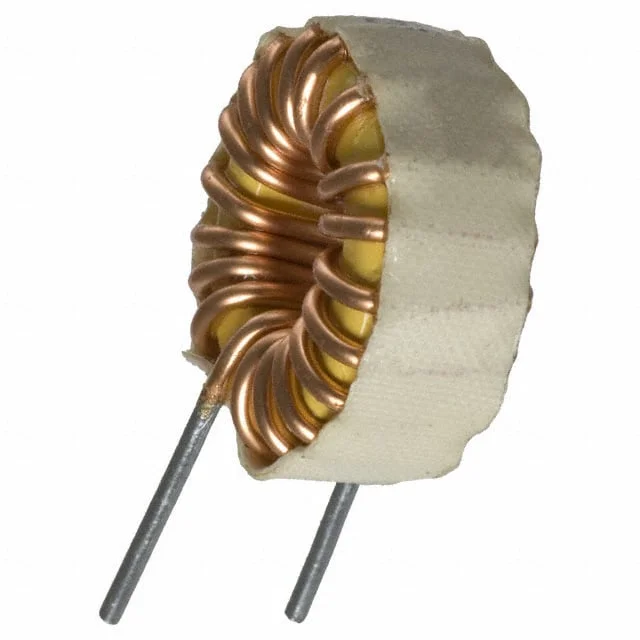

Description
FIXED IND 40UH 4A 25 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5731-RC.
5731-RC has an inductance value of 40 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5731-RC is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5731-RC lists a DC resistance of 25mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5731-RC uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5731-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 40 µH |
| Tolerance | ±15% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 25mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 40UH 4A 25 MOHM TH |
| Series | 5700 |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
