Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 ASPI-0403S-682M-T Abracon | 6.8 mH | 40 mA | 25Ohm Max | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-470M-T Abracon | 47 µH | 500 mA | 230mOhm Max | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-220M-T Abracon | 22 µH | 700 mA | 110mOhm | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-472M-T Abracon | 4.7 mH | 60 mA | 13.9Ohm Max | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-471M-T Abracon | 470 µH | 190 mA | 1.8Ohm Max | - | Surface Mount | |
 ASPI-0403S-100M-T Abracon | 10 µH | 1 A | 75mOhm Max | - | Surface Mount | |

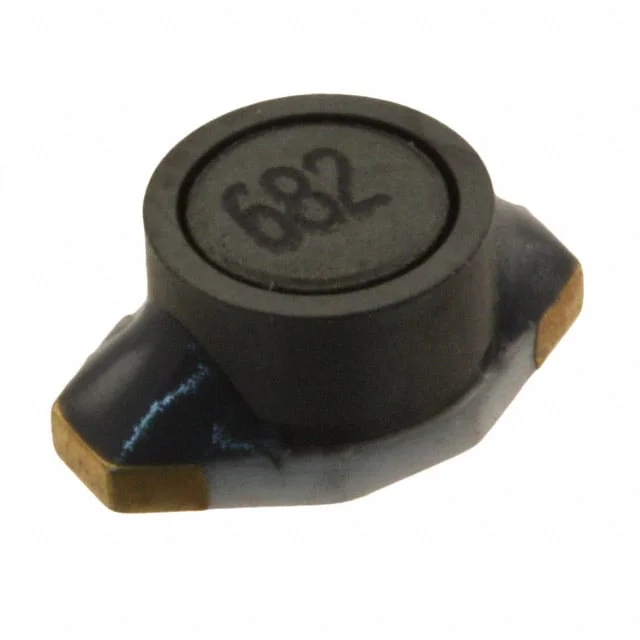

 ASPI-0403S-680M-T Abracon | 68 µH | 400 mA | 290mOhm Max | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-101M-T Abracon | 100 µH | 300 mA | 480mOhm Max | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-331M-T Abracon | 330 µH | 200 mA | 1.4Ohm Max | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Nonstandard | |
 ASPI-0403S-822M-T Abracon | 8.2 mH | 30 mA | 29.81Ohm Max | - | Surface Mount | |
 ASPI-0403S-103M-T Abracon | 10 mH | 20 mA | 32.8Ohm Max | - | Surface Mount | |
 ASPI-0403S-681M-T Abracon | 680 µH | 180 mA | 2.2Ohm Max | - | Surface Mount | |
 ASPI-0403S-332M-T Abracon | 3.3 mH | 80 mA | 11Ohm Max | - | Surface Mount | |
 ASPI-0403S-222M-T Abracon | 2.2 mH | 100 mA | 8.5Ohm Max | - | Surface Mount | |
 ASPI-0403S-102M-T Abracon | 1 mH | 150 mA | 3.4Ohm Max | - | Surface Mount | |
 ASPI-0403S-152M-T Abracon | 1.5 mH | 120 mA | 4.2Ohm Max | - | Surface Mount | |
 ASPI-0403S-3R3M-T Abracon | 3.3 µH | 1.6 A | 55mOhm Max | - | Surface Mount | |
 ASPI-0403S-1R0M-T Abracon | 1 µH | 3 A | 40mOhm Max | - | Surface Mount | |
 ASPI-0403S-1R5M-T Abracon | 1.5 µH | 2.8 A | 45mOhm Max | - | Surface Mount | |
 ASPI-0403S-2R2M-T Abracon | 2.2 µH | 1.8 A | 50mOhm Max | - | Surface Mount | |
 ASPI-0403S-5R6M-T Abracon | 5.6 µH | 1.3 A | 62mOhm Max | - | Surface Mount | |
 ASPI-0403S-6R8M-T Abracon | 6.8 µH | 1.2 A | 65mOhm Max | - | Surface Mount | |
 ASPI-0403S-150M-T Abracon | 15 µH | 800 mA | 90mOhm Max | - | Surface Mount | |
 ASPI-0403S-330M-T Abracon | 33 µH | 600 mA | 190mOhm Max | - | Surface Mount | |
 ASPI-0403S-151M-T Abracon | 150 µH | 260 mA | 590mOhm Max | - | Surface Mount |
