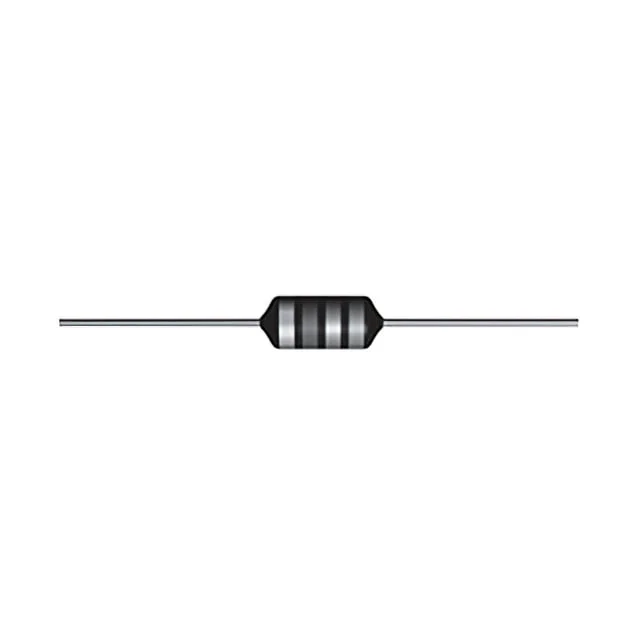

Series: B82144A2
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 15 µH | 1.25 A | 280mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 6.8 µH | 1.5 A | 190mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 3.3 µH | 1.75 A | 130mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 150 µH | 500 mA | 900mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 470 µH | 280 mA | 2.5Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 2.2 µH | 1.9 A | 110mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 10 mH | 60 mA | 42Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 2.2 mH | 120 mA | 9Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 3.3 mH | 110 mA | 12Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 15 mH | 50 mA | 68Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 22 mH | 40 mA | 120Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 47 mH | 30 mA | 230Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 33 mH | 35 mA | 150Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 100 mH | 20 mA | 420Ohm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 1.5 µH | 2.1 A | 90mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial | ||
| 1.5 µH | 2.1 A | 90mOhm Max | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | Axial |
