BMRA000606306R8MA1
Pulse Electronics
- Inductance
- 6.8 µH
- Current
- 4.5 A
- DCR
- 60mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: BMRA
Browse series tables and compare the available specifications.
BMRA
BMRA000606302R2MA1
Pulse Electronics
- Inductance
- 2.2 µH
- Current
- 8.5 A
- DCR
- 20mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA000606304R7MA1
Pulse Electronics
- Inductance
- 4.7 µH
- Current
- 5.5 A
- DCR
- 40mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA000606301R5MA1
Pulse Electronics
- Inductance
- 1.5 µH
- Current
- 9.5 A
- DCR
- 15mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA000606301R0MA1
Pulse Electronics
- Inductance
- 1 µH
- Current
- 12 A
- DCR
- 10mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA00060630220MA1
Pulse Electronics
- Inductance
- 22 µH
- Current
- 3 A
- DCR
- 145mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA00060630150MA1
Pulse Electronics
- Inductance
- 15 µH
- Current
- 3 A
- DCR
- 122mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA00040420100MA1
Pulse Electronics
- Inductance
- 10 µH
- Current
- 1.6 A
- DCR
- 258mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)
BMRA00060630R47MA1
Pulse Electronics
- Inductance
- 470 nH
- Current
- 16.5 A
- DCR
- 5.5mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA00060630R22MA1
Pulse Electronics
- Inductance
- 220 nH
- Current
- 23 A
- DCR
- 2.8mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA000505304R7MA1
Pulse Electronics
- Inductance
- 4.7 µH
- Current
- 4 A
- DCR
- 60mOhm Max
- Size
- 0.213" L x 0.224" W (5.40mm x 5.70mm)
BMRA000505202R2MA1
Pulse Electronics
- Inductance
- 2.2 µH
- Current
- 4 A
- DCR
- 45mOhm Max
- Size
- 0.213" L x 0.224" W (5.40mm x 5.70mm)
BMRA000505151R0MA1
Pulse Electronics
- Inductance
- 1 µH
- Current
- 5 A
- DCR
- 33mOhm Max
- Size
- 0.213" L x 0.224" W (5.40mm x 5.70mm)
BMRA000404122R2MA1
Pulse Electronics
- Inductance
- 2.2 µH
- Current
- 2.75 A
- DCR
- 83.5mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)

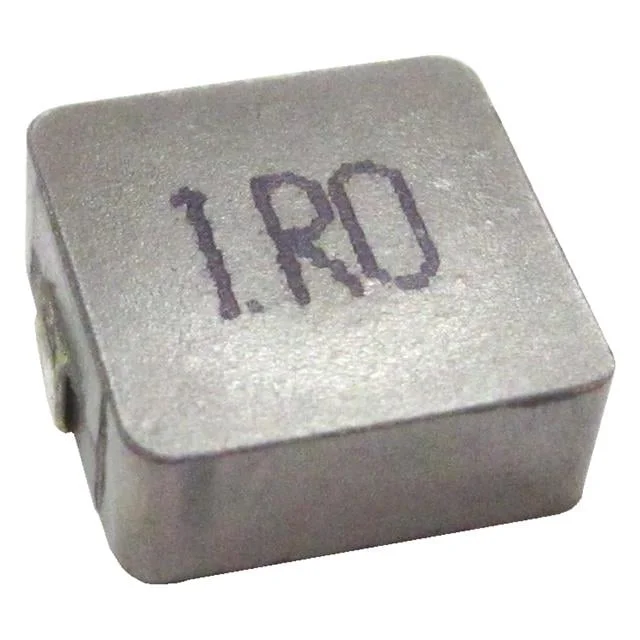

BMRA000404201R5MA1
Pulse Electronics
- Inductance
- 1.5 µH
- Current
- 4 A
- DCR
- 46mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)
BMRA000404201R0MA1
Pulse Electronics
- Inductance
- 1 µH
- Current
- 4.5 A
- DCR
- 27mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)

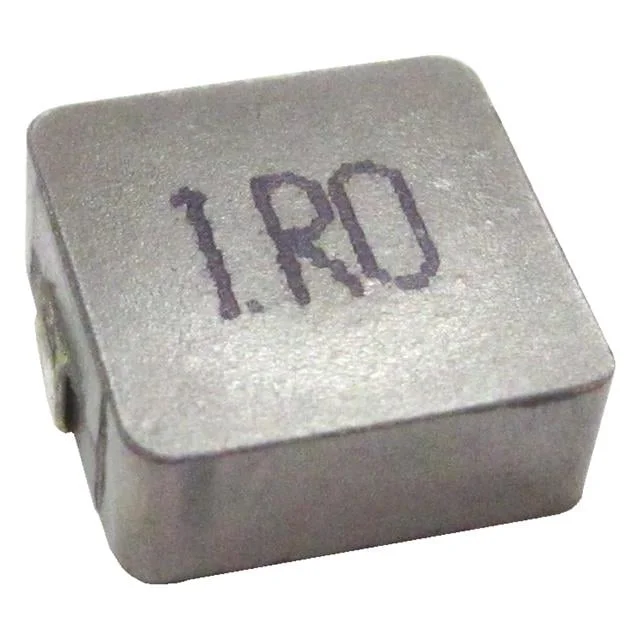

BMRA000404202R2MA1
Pulse Electronics
- Inductance
- 2.2 µH
- Current
- 3 A
- DCR
- 58mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)
BMRA000404203R3MA1
Pulse Electronics
- Inductance
- 3.3 µH
- Current
- 2.5 A
- DCR
- 87mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)
BMRA000404204R7MA1
Pulse Electronics
- Inductance
- 4.7 µH
- Current
- 2.2 A
- DCR
- 126mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)
BMRA00060630R33MA1
Pulse Electronics
- Inductance
- 330 nH
- Current
- 20 A
- DCR
- 4.2mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA000606303R3MA1
Pulse Electronics
- Inductance
- 3.3 µH
- Current
- 6 A
- DCR
- 35mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA00060630R68MA1
Pulse Electronics
- Inductance
- 680 nH
- Current
- 15 A
- DCR
- 6.3mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
BMRA000505301R0MA1
Pulse Electronics
- Inductance
- 1 µH
- Current
- 7 A
- DCR
- 15mOhm Max
- Size
- 0.213" L x 0.224" W (5.40mm x 5.70mm)
BMRA000505303R3MA1
Pulse Electronics
- Inductance
- 3.3 µH
- Current
- 4.5 A
- DCR
- 46mOhm Max
- Size
- 0.213" L x 0.224" W (5.40mm x 5.70mm)
BMRA00040420R47MA1
Pulse Electronics
- Inductance
- 470 nH
- Current
- 7 A
- DCR
- 14mOhm Max
- Size
- 0.161" L x 0.181" W (4.10mm x 4.60mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
BMRA000606306R8MA1 Pulse Electronics | 6.8 µH | 4.5 A | 60mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000606302R2MA1 Pulse Electronics | 2.2 µH | 8.5 A | 20mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000606304R7MA1 Pulse Electronics | 4.7 µH | 5.5 A | 40mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000606301R5MA1 Pulse Electronics | 1.5 µH | 9.5 A | 15mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000606301R0MA1 Pulse Electronics | 1 µH | 12 A | 10mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA00060630220MA1 Pulse Electronics | 22 µH | 3 A | 145mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA00060630150MA1 Pulse Electronics | 15 µH | 3 A | 122mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA00040420100MA1 Pulse Electronics | 10 µH | 1.6 A | 258mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA00060630R47MA1 Pulse Electronics | 470 nH | 16.5 A | 5.5mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA00060630R22MA1 Pulse Electronics | 220 nH | 23 A | 2.8mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000505304R7MA1 Pulse Electronics | 4.7 µH | 4 A | 60mOhm Max | 0.213" L x 0.224" W (5.40mm x 5.70mm) | Nonstandard | |
BMRA000505202R2MA1 Pulse Electronics | 2.2 µH | 4 A | 45mOhm Max | 0.213" L x 0.224" W (5.40mm x 5.70mm) | Nonstandard | |
BMRA000505151R0MA1 Pulse Electronics | 1 µH | 5 A | 33mOhm Max | 0.213" L x 0.224" W (5.40mm x 5.70mm) | Nonstandard | |
BMRA000404122R2MA1 Pulse Electronics | 2.2 µH | 2.75 A | 83.5mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA000404201R5MA1 Pulse Electronics | 1.5 µH | 4 A | 46mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA000404201R0MA1 Pulse Electronics | 1 µH | 4.5 A | 27mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA000404202R2MA1 Pulse Electronics | 2.2 µH | 3 A | 58mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA000404203R3MA1 Pulse Electronics | 3.3 µH | 2.5 A | 87mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA000404204R7MA1 Pulse Electronics | 4.7 µH | 2.2 A | 126mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard | |
BMRA00060630R33MA1 Pulse Electronics | 330 nH | 20 A | 4.2mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000606303R3MA1 Pulse Electronics | 3.3 µH | 6 A | 35mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA00060630R68MA1 Pulse Electronics | 680 nH | 15 A | 6.3mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
BMRA000505301R0MA1 Pulse Electronics | 1 µH | 7 A | 15mOhm Max | 0.213" L x 0.224" W (5.40mm x 5.70mm) | Nonstandard | |
BMRA000505303R3MA1 Pulse Electronics | 3.3 µH | 4.5 A | 46mOhm Max | 0.213" L x 0.224" W (5.40mm x 5.70mm) | Nonstandard | |
BMRA00040420R47MA1 Pulse Electronics | 470 nH | 7 A | 14mOhm Max | 0.161" L x 0.181" W (4.10mm x 4.60mm) | Nonstandard |
