Series: CSBA1050
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CSBA1050-1R8M CODACA | 1.8 µH | 17 A | 3.45mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |

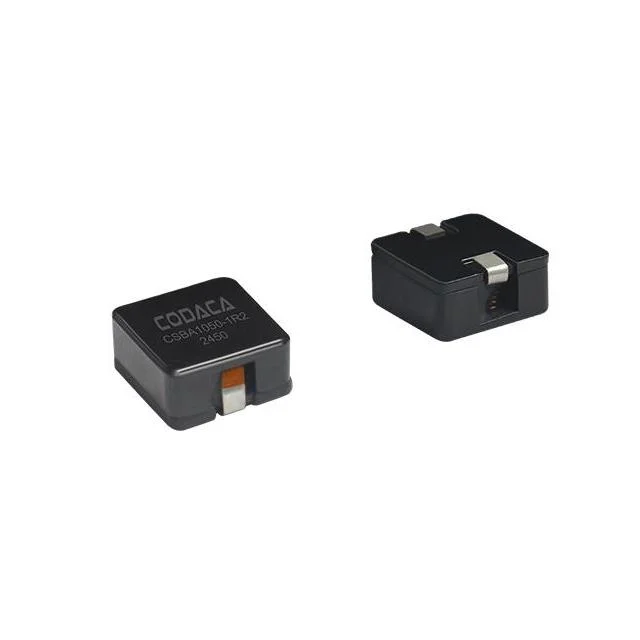

 CSBA1050-6R5M CODACA | 6.5 µH | 9 A | 12.1mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-3R3M CODACA | 3.3 µH | 12 A | 6.5mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-140M CODACA | 14 µH | 5.8 A | 29.8mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-7R8M CODACA | 7.8 µH | 8 A | 15.1mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-100M CODACA | 10 µH | 7 A | 20mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-R39M CODACA | 0.39 µH | 30 A | 0.77mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-5R2M CODACA | 5.2 µH | 10 A | 9.9mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-2R4M CODACA | 2.4 µH | 14.5 A | 4.7mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-4R2M CODACA | 4.2 µH | 11 A | 8.5mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1050-R16M CODACA | 0.16 µH | 35 A | 0.55mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD |
