CSBX2212-4R7M
CODACA
- Inductance
- 4.7 µH
- Current
- 30 A
- DCR
- 1.75mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: CSBX2212
Browse series tables and compare the available specifications.
CSBX2212
CSBX2212-8R2M
CODACA
- Inductance
- 8.2 µH
- Current
- 24 A
- DCR
- 3.2mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-820M
CODACA
- Inductance
- 82 µH
- Current
- 7 A
- DCR
- 33.7mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-680M
CODACA
- Inductance
- 68 µH
- Current
- 7.5 A
- DCR
- 30.3mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-120M
CODACA
- Inductance
- 12 µH
- Current
- 19.5 A
- DCR
- 4.8mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-330M
CODACA
- Inductance
- 33 µH
- Current
- 11.5 A
- DCR
- 13.5mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-220M
CODACA
- Inductance
- 22 µH
- Current
- 15 A
- DCR
- 8.25mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-100M
CODACA
- Inductance
- 10 µH
- Current
- 21 A
- DCR
- 3.88mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-150M
CODACA
- Inductance
- 15 µH
- Current
- 18 A
- DCR
- 5.45mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-470M
CODACA
- Inductance
- 47 µH
- Current
- 9 A
- DCR
- 21.4mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-6R8M
CODACA
- Inductance
- 6.8 µH
- Current
- 26 A
- DCR
- 2.7mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-101M
CODACA
- Inductance
- 100 µH
- Current
- 6.1 A
- DCR
- 40.8mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-390M
CODACA
- Inductance
- 39 µH
- Current
- 9.5 A
- DCR
- 19.8mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
CSBX2212-560M
CODACA
- Inductance
- 56 µH
- Current
- 8.2 A
- DCR
- 23.3mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)

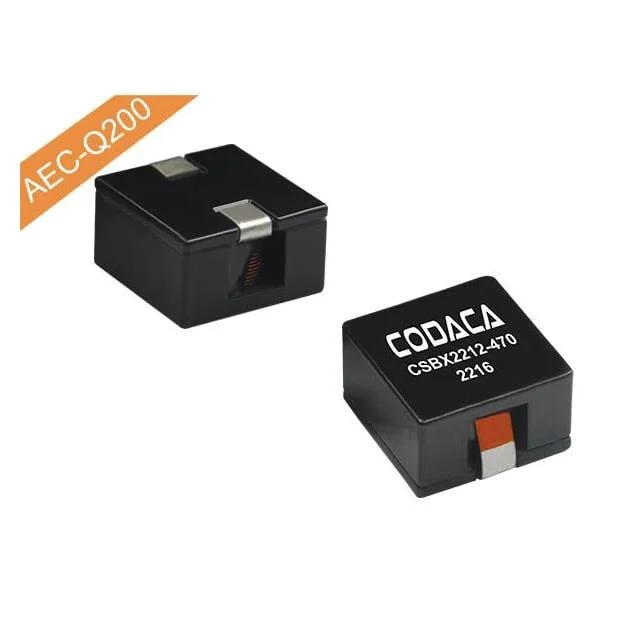

CSBX2212-3R3M
CODACA
- Inductance
- 3.3 µH
- Current
- 32 A
- DCR
- 1.2mOhm Max
- Size
- 0.886 L x 0.866 W (22.50mm x 22.00mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
CSBX2212-4R7M CODACA | 4.7 µH | 30 A | 1.75mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-8R2M CODACA | 8.2 µH | 24 A | 3.2mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-820M CODACA | 82 µH | 7 A | 33.7mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-680M CODACA | 68 µH | 7.5 A | 30.3mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-120M CODACA | 12 µH | 19.5 A | 4.8mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-330M CODACA | 33 µH | 11.5 A | 13.5mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-220M CODACA | 22 µH | 15 A | 8.25mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-100M CODACA | 10 µH | 21 A | 3.88mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-150M CODACA | 15 µH | 18 A | 5.45mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-470M CODACA | 47 µH | 9 A | 21.4mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-6R8M CODACA | 6.8 µH | 26 A | 2.7mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-101M CODACA | 100 µH | 6.1 A | 40.8mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-390M CODACA | 39 µH | 9.5 A | 19.8mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-560M CODACA | 56 µH | 8.2 A | 23.3mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD | |
CSBX2212-3R3M CODACA | 3.3 µH | 32 A | 1.2mOhm Max | 0.886 L x 0.866 W (22.50mm x 22.00mm) | 2-SMD |
