CSCF3218-3R3MC
CODACA
- Inductance
- 3.3 µH
- Current
- 55 A
- DCR
- 1.2mOhm Max
- Size
- 1.260 L x 0.886 W (32.00mm x 22.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: CSCF3218
Browse series tables and compare the available specifications.
CSCF3218
CSCF3218-100MC
CODACA
- Inductance
- 10 µH
- Current
- 40 A
- DCR
- 2.8mOhm Max
- Size
- 1.260 L x 0.886 W (32.00mm x 22.50mm)

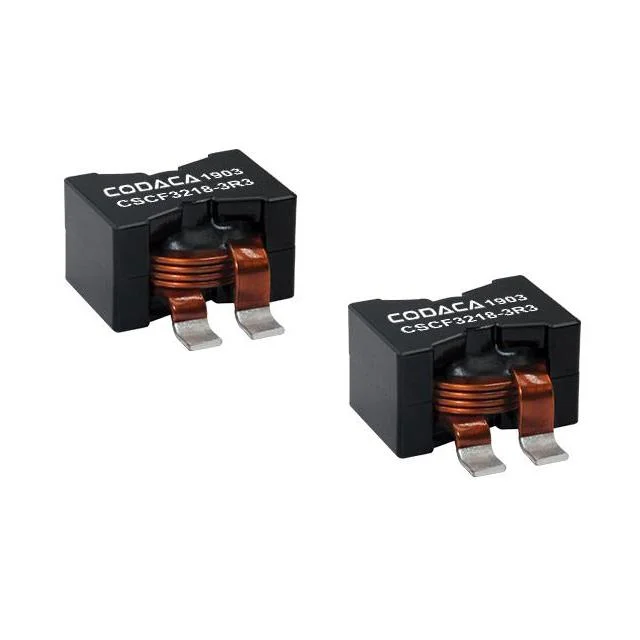

CSCF3218-6R8MC
CODACA
- Inductance
- 6.8 µH
- Current
- 50 A
- DCR
- 1.6mOhm Max
- Size
- 1.260 L x 0.886 W (32.00mm x 22.50mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
CSCF3218-3R3MC CODACA | 3.3 µH | 55 A | 1.2mOhm Max | 1.260 L x 0.886 W (32.00mm x 22.50mm) | Vertical, 3 PC Pin | |
CSCF3218-100MC CODACA | 10 µH | 40 A | 2.8mOhm Max | 1.260 L x 0.886 W (32.00mm x 22.50mm) | Vertical, 3 PC Pin | |
CSCF3218-6R8MC CODACA | 6.8 µH | 50 A | 1.6mOhm Max | 1.260 L x 0.886 W (32.00mm x 22.50mm) | Vertical, 3 PC Pin |
