Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: CSEG0520H
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CSEG0520H-3R3M CODACA | 3.3 µH | 10.4 A | 23.4mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-1R8M CODACA | 1.8 µH | 13 A | 12.3mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-R68M CODACA | 0.68 µH | 18.6 A | 5.1mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-R82M CODACA | 0.82 µH | 17.7 A | 6.8mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-1R0M CODACA | 1 µH | 16.3 A | 7.3mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-2R2M CODACA | 2.2 µH | 11.5 A | 17.7mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-1R2M CODACA | 1.2 µH | 14.5 A | 8.9mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |

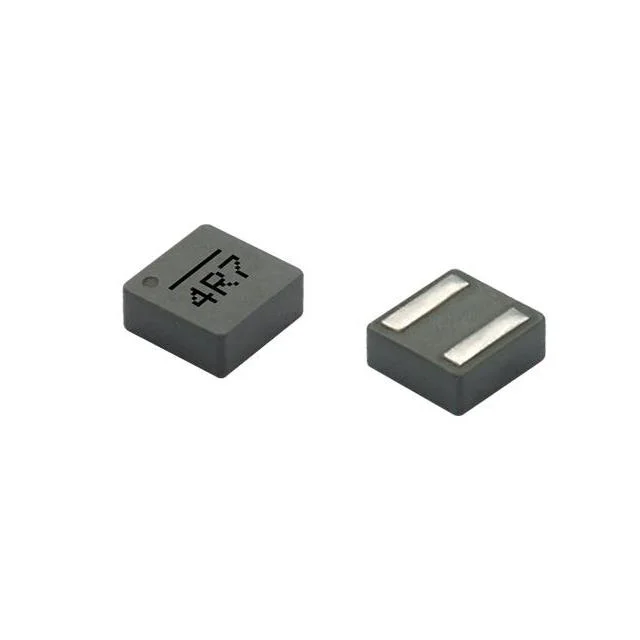

 CSEG0520H-R90M CODACA | 0.9 µH | 17 A | 7.1mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-1R5M CODACA | 1.5 µH | 13.9 A | 12mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD | |
 CSEG0520H-4R7M CODACA | 4.7 µH | 9.1 A | 33.5mOhm Max | 0.219 L x 0.211 W (5.55mm x 5.35mm) | 2-SMD |
