Series: CSEG1060
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CSEG1060-1R5M CODACA | 1.5 µH | 32 A | 2.8mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-1R0M CODACA | 1 µH | 41 A | 2mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-1R8M CODACA | 1.8 µH | 29 A | 3.2mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-2R7M CODACA | 2.7 µH | 24 A | 4.9mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-4R7M CODACA | 4.7 µH | 19 A | 8.5mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-100M CODACA | 10 µH | 13 A | 18mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |

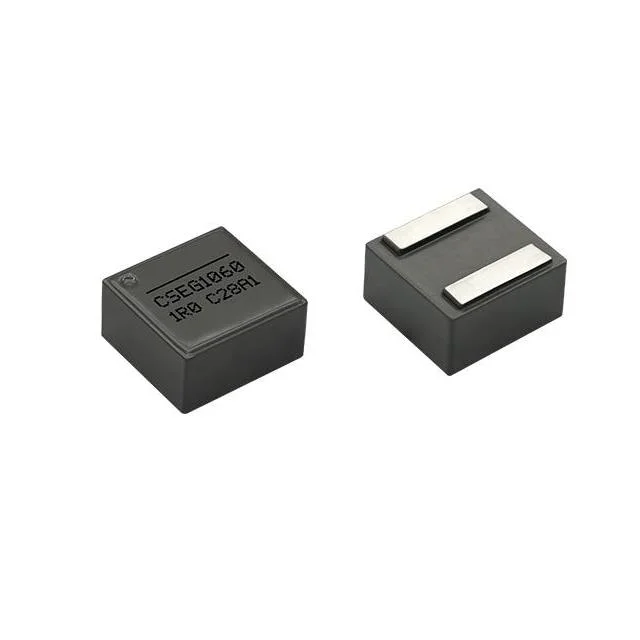

 CSEG1060-2R2M CODACA | 2.2 µH | 26 A | 4.3mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-6R8M CODACA | 6.8 µH | 15.5 A | 12.5mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-5R6M CODACA | 5.6 µH | 17.2 A | 10.1mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-8R2M CODACA | 8.2 µH | 14 A | 15mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD | |
 CSEG1060-3R3M CODACA | 3.3 µH | 23 A | 5.7mOhm Max | 0.457 L x 0.413 W (11.60mm x 10.50mm) | 2-SMD |
