Series: CTGS43F
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CTGS43F-100M Central Technologies | 10 µH | 1.15 A | 182mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-4R7M Central Technologies | 4.7 µH | 1.70 A | 94mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-330K Central Technologies | 33 µH | 0.64 A | 540mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-8R2M Central Technologies | 8.2 µH | 1.26 A | 132mOhm Max | 0.177 L x 0.157 W (4.50mm x 4.00mm) | Nonstandard | |

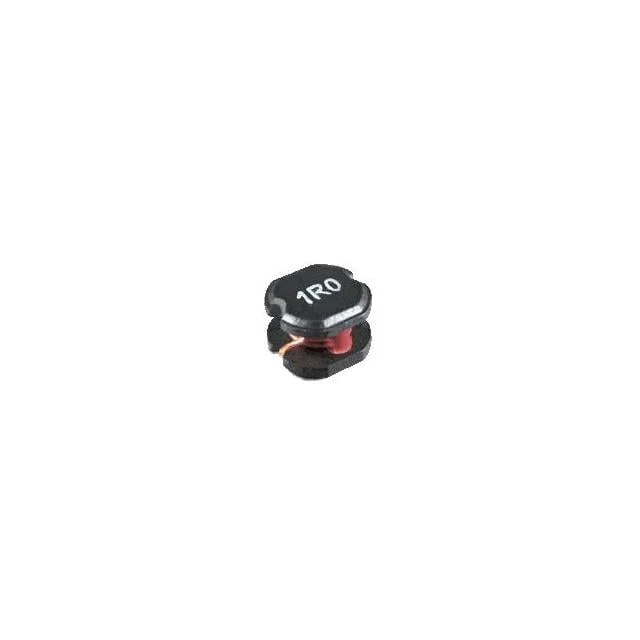

 CTGS43F-3R9M Central Technologies | 3.9 µH | 1.98 A | 76mOhm Max | 0.177 L x 0.157 W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-1R0M Central Technologies | 1 µH | 3.80 A | 33mOhm Max | 0.177 L x 0.157 W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-220M Central Technologies | 22 µH | 0.76 A | 378mOhm Max | 0.177 L x 0.157 W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-2R2M Central Technologies | 2.2 µH | 2.60 A | 47mOhm Max | 0.177 L x 0.157 W (4.50mm x 4.00mm) | Nonstandard | |
 CTGS43F-680K Central Technologies | 68 µH | 0.46 A | 1.117Ohm Max | 0.177 L x 0.157 W (4.50mm x 4.00mm) | Nonstandard |
