Series: MLP

Browse series tables and compare the available specifications.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

MLP1608VR47BT0S1

TDK

470 nH• 800 mA0603 (1608 Metric)

MLP2016VR47MT0S1

TDK

470 nH• 1.5 A0806 (2016 Metric)

MLP2012V4R7MT0S1

TDK

4.7 µH• 600 mA0805 (2012 Metric)

MLP2520V1R5MT0S1

TDK

1.5 µH• 1.4 A1008 (2520 Metric)

MLP1005M1R0DT0S1

TDK

1 µH• 500 mA0402 (1005 Metric)

MLP2520H1R0MT0S1

TDK

1 µH• 1.5 A1008 (2520 Metric)

MLP2520V1R0MT0S1

TDK

1 µH• 1.3 A1008 (2520 Metric)

MLP2012VR47MT0S1

TDK

470 nH• 1.1 A0805 (2012 Metric)

MLP2016V1R5MT0S1

TDK

1.5 µH• 1.15 A0806 (2016 Metric)

MLP2520V2R2MT0S1

TDK

2.2 µH• 1.1 A1008 (2520 Metric)

MLP2520V4R7MT0S1

TDK

4.7 µH• 800 mA1008 (2520 Metric)

MLP2012H2R2MT0S1

TDK

2.2 µH• 1 A0805 (2012 Metric)

MLP2016S2R2MT0S1

TDK

2.2 µH• 1.2 A0806 (2016 Metric)

MLP2016H4R7MT0S1

TDK

4.7 µH• 1.1 A0806 (2016 Metric)

MLP2016H2R2MT0S1

TDK

2.2 µH• 1.2 A0806 (2016 Metric)

MLP2012S1R0MT0S1

TDK

1 µH• 1 A0805 (2012 Metric)

MLP2016V2R2MT0S1

TDK

2.2 µH• 1 A0806 (2016 Metric)

MLP2012S3R3MT0S1

TDK

3.3 µH• 900 mA0805 (2012 Metric)

MLP2012S2R2MT0S1

TDK

2.2 µH• 800 mA0805 (2012 Metric)

MLP2016H3R3MT0S1

TDK

3.3 µH• 1.2 A0806 (2016 Metric)

MLP2012S1R5MT0S1

TDK

1.5 µH• 1 A0805 (2012 Metric)

MLP2012S4R7MT0S1

TDK

4.7 µH• 700 mA0805 (2012 Metric)

MLP2012H1R0MT0S1

TDK

1 µH• 1.1 A0805 (2012 Metric)

MLP1608V2R2BT0S1

TDK

2.2 µH• 600 mA0603 (1608 Metric)

MLP1608H2R2BT0S1

TDK

2.2 µH• 750 mA0603 (1608 Metric)

Product	Inductance	Current	DCR	Size	Package	Actions
MLP1608VR47BT0S1 TDK	470 nH	800 mA	260mOhm Max	0.063" L x 0.031" W (1.60mm x 0.80mm)	0603 (1608 Metric)	View PDF
MLP2016VR47MT0S1 TDK	470 nH	1.5 A	87.5mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
MLP2012V4R7MT0S1 TDK	4.7 µH	600 mA	520mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF

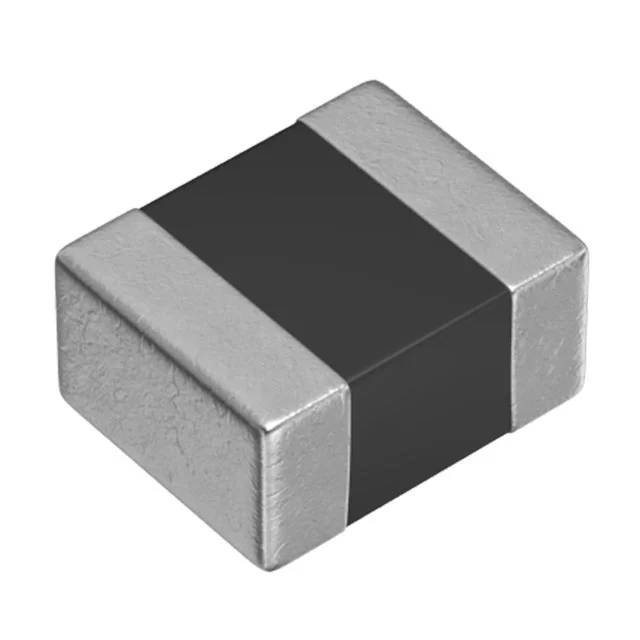

MLP2520V1R5MT0S1 TDK	1.5 µH	1.4 A	130mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF

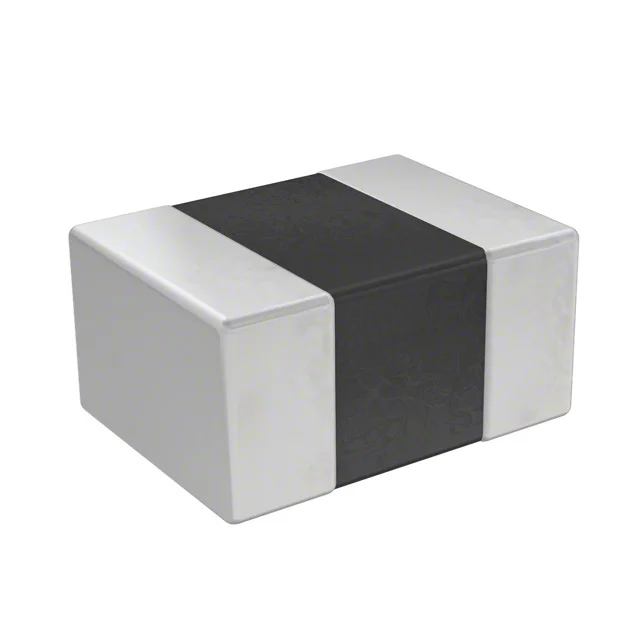

MLP1005M1R0DT0S1 TDK	1 µH	500 mA	689mOhm Max	0.039" L x 0.020" W (1.00mm x 0.50mm)	0402 (1005 Metric)	View PDF
MLP2520H1R0MT0S1 TDK	1 µH	1.5 A	97.5mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
MLP2520V1R0MT0S1 TDK	1 µH	1.3 A	130mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
MLP2012VR47MT0S1 TDK	470 nH	1.1 A	143mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2016V1R5MT0S1 TDK	1.5 µH	1.15 A	175mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
MLP2520V2R2MT0S1 TDK	2.2 µH	1.1 A	156mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
MLP2520V4R7MT0S1 TDK	4.7 µH	800 mA	312mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
MLP2012H2R2MT0S1 TDK	2.2 µH	1 A	195mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2016S2R2MT0S1 TDK	2.2 µH	1.2 A	143mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF

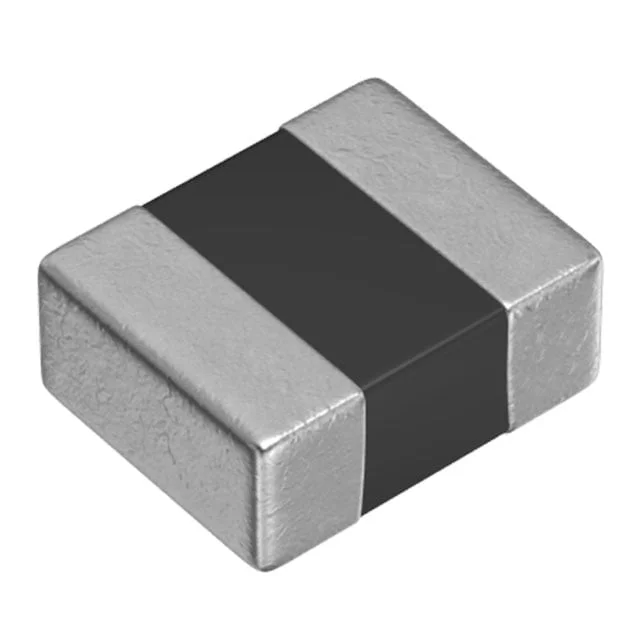

MLP2016H4R7MT0S1 TDK	4.7 µH	1.1 A	200mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
MLP2016H2R2MT0S1 TDK	2.2 µH	1.2 A	137.5mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
MLP2012S1R0MT0S1 TDK	1 µH	1 A	208mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2016V2R2MT0S1 TDK	2.2 µH	1 A	212.5mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
MLP2012S3R3MT0S1 TDK	3.3 µH	900 mA	247mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2012S2R2MT0S1 TDK	2.2 µH	800 mA	299mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2016H3R3MT0S1 TDK	3.3 µH	1.2 A	150mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
MLP2012S1R5MT0S1 TDK	1.5 µH	1 A	208mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2012S4R7MT0S1 TDK	4.7 µH	700 mA	338mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF
MLP2012H1R0MT0S1 TDK	1 µH	1.1 A	156mOhm Max	0.079" L x 0.049" W (2.00mm x 1.25mm)	0805 (2012 Metric)	View PDF

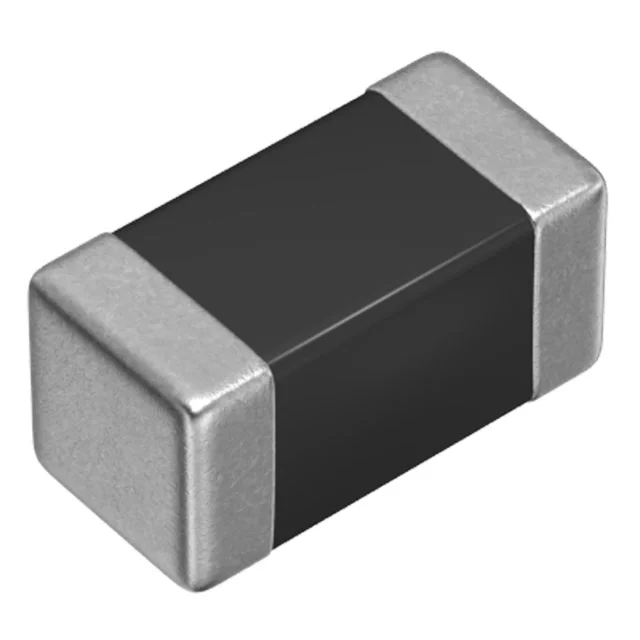

MLP1608V2R2BT0S1 TDK	2.2 µH	600 mA	468mOhm Max	0.063" L x 0.031" W (1.60mm x 0.80mm)	0603 (1608 Metric)	View PDF
MLP1608H2R2BT0S1 TDK	2.2 µH	750 mA	390mOhm Max	0.063" L x 0.031" W (1.60mm x 0.80mm)	0603 (1608 Metric)	View PDF
