Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

Pulse Electronics

47 µH• 2.2 ANonstandard

Pulse Electronics

680 µH• 570 mANonstandard

Pulse Electronics

2.2 µH• 9.6 ANonstandard

Pulse Electronics

5 µH• 6.4 ANonstandard

Pulse Electronics

100 µH• 1.4 ANonstandard

Pulse Electronics

12 µH• 4.2 ANonstandard

Pulse Electronics

330 µH• 820 mANonstandard

Pulse Electronics

3.9 µH• 7 ANonstandard

Pulse Electronics

1 mH• 460 mANonstandard

Pulse Electronics

150 µH• 1.2 ANonstandard

Pulse Electronics

10 µH• 4.4 ANonstandard

Pulse Electronics

15 µH• 4 ANonstandard

Pulse Electronics

220 µH• 1 ANonstandard

Pulse Electronics

68 µH• 1.8 ANonstandard

Pulse Electronics

33 µH• 2.6 ANonstandard

Pulse Electronics

22 µH• 3 ANonstandard

Pulse Electronics

56 µH• 2 ANonstandard

Pulse Electronics

3 µH• 8.3 ANonstandard

Pulse Electronics

1.4 µH• 11 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
P1170.473NLT Pulse Electronics	47 µH	2.2 A	100mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.684NLT Pulse Electronics	680 µH	570 mA	1.2Ohm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.222NLT Pulse Electronics	2.2 µH	9.6 A	5.7mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF

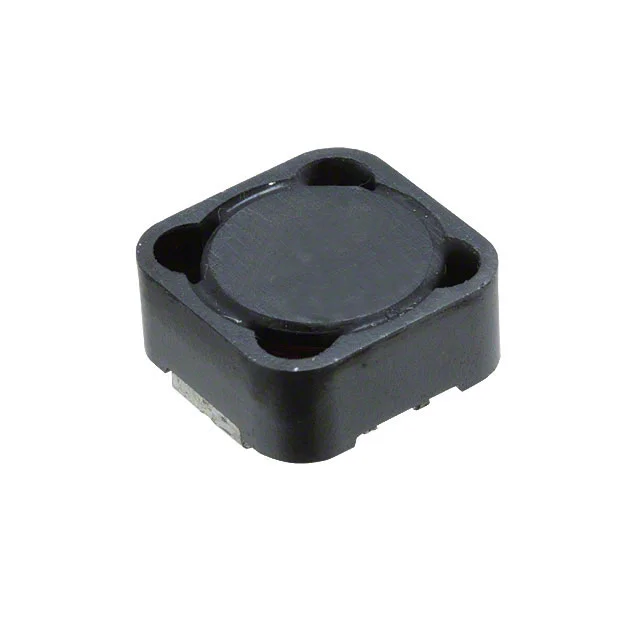

P1170.502NLT Pulse Electronics	5 µH	6.4 A	12mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.104NLT Pulse Electronics	100 µH	1.4 A	230mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.123NLT Pulse Electronics	12 µH	4.2 A	27mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.334NLT Pulse Electronics	330 µH	820 mA	620mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.392NLT Pulse Electronics	3.9 µH	7 A	10mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.105NLT Pulse Electronics	1 mH	460 mA	1.75Ohm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.154NLT Pulse Electronics	150 µH	1.2 A	280mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.103NLT Pulse Electronics	10 µH	4.4 A	25mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.153NLT Pulse Electronics	15 µH	4 A	30mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.224NLT Pulse Electronics	220 µH	1 A	400mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.683NLT Pulse Electronics	68 µH	1.8 A	120mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.333NLT Pulse Electronics	33 µH	2.6 A	70mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.223NLT Pulse Electronics	22 µH	3 A	45mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.563NLT Pulse Electronics	56 µH	2 A	110mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.302NLT Pulse Electronics	3 µH	8.3 A	7.7mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
P1170.142NLT Pulse Electronics	1.4 µH	11 A	4.2mOhm Max	0.482" L x 0.482" W (12.24mm x 12.24mm)	Nonstandard	View PDF
