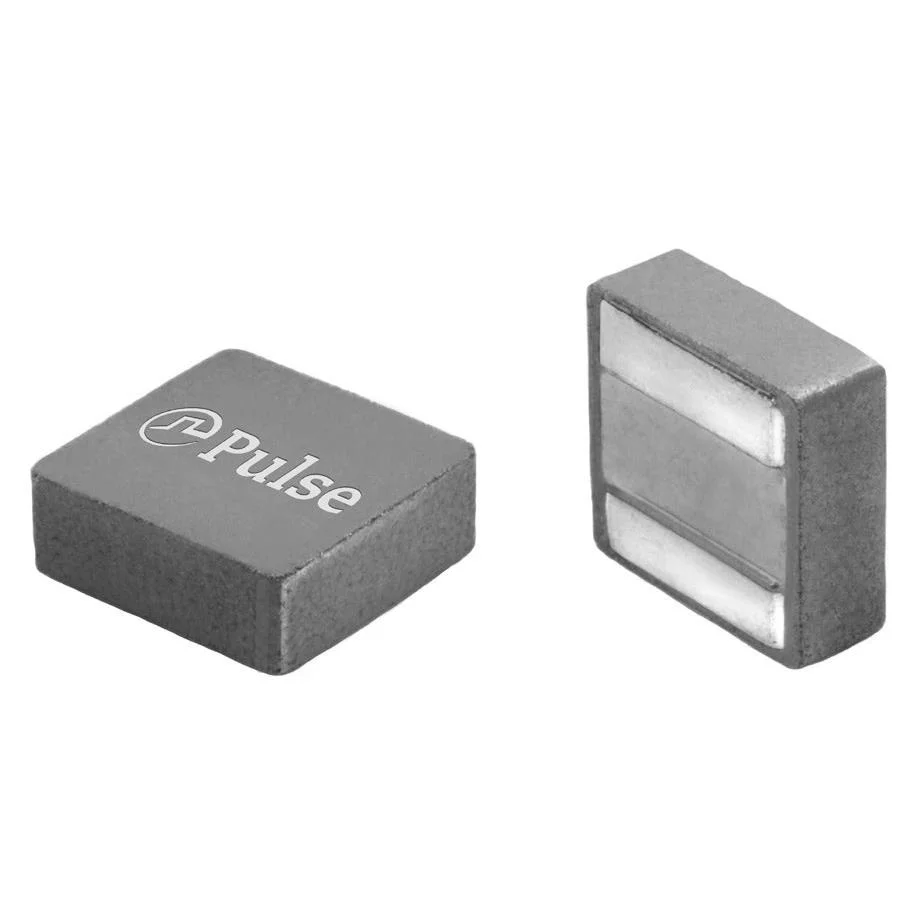

PA2241.103NLT
Pulse Electronics
- Inductance
- 10 µH
- Current
- 8.7 A
- DCR
- 22.9mOhm Max
- Size
- 0.350" L x 0.335" W (8.90mm x 8.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: PA2241.XXXNLT
Browse series tables and compare the available specifications.
PA2241.XXXNLT
PA2241.472NLT
Pulse Electronics
- Inductance
- 4.7 µH
- Current
- 14.6 A
- DCR
- 9.8mOhm Max
- Size
- 0.350" L x 0.335" W (8.90mm x 8.50mm)
PA2241.182NLT
Pulse Electronics
- Inductance
- 1.8 µH
- Current
- 24 A
- DCR
- 4mOhm Max
- Size
- 0.350" L x 0.335" W (8.90mm x 8.50mm)
PA2241.222NLT
Pulse Electronics
- Inductance
- 2.2 µH
- Current
- 21.5 A
- DCR
- 4.3mOhm Max
- Size
- 0.350" L x 0.335" W (8.90mm x 8.50mm)
PA2241.332NLT
Pulse Electronics
- Inductance
- 3.3 µH
- Current
- 18 A
- DCR
- 7.3mOhm Max
- Size
- 0.350" L x 0.335" W (8.90mm x 8.50mm)
PA2241.682NLT
Pulse Electronics
- Inductance
- 6.8 µH
- Current
- 11.3 A
- DCR
- 14.3mOhm Max
- Size
- 0.350" L x 0.335" W (8.90mm x 8.50mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
PA2241.103NLT Pulse Electronics | 10 µH | 8.7 A | 22.9mOhm Max | 0.350" L x 0.335" W (8.90mm x 8.50mm) | Nonstandard | |
PA2241.472NLT Pulse Electronics | 4.7 µH | 14.6 A | 9.8mOhm Max | 0.350" L x 0.335" W (8.90mm x 8.50mm) | Nonstandard | |
PA2241.182NLT Pulse Electronics | 1.8 µH | 24 A | 4mOhm Max | 0.350" L x 0.335" W (8.90mm x 8.50mm) | Nonstandard | |
PA2241.222NLT Pulse Electronics | 2.2 µH | 21.5 A | 4.3mOhm Max | 0.350" L x 0.335" W (8.90mm x 8.50mm) | Nonstandard | |
PA2241.332NLT Pulse Electronics | 3.3 µH | 18 A | 7.3mOhm Max | 0.350" L x 0.335" W (8.90mm x 8.50mm) | Nonstandard | |
PA2241.682NLT Pulse Electronics | 6.8 µH | 11.3 A | 14.3mOhm Max | 0.350" L x 0.335" W (8.90mm x 8.50mm) | Nonstandard |
