PM5404.562NLT
Pulse Electronics
- Inductance
- 5.6 µH
- Current
- 6 A
- DCR
- 49mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: PM5404
Browse series tables and compare the available specifications.
PM5404
PM5404.563NLT
Pulse Electronics
- Inductance
- 56 µH
- Current
- 1.6 A
- DCR
- 396mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.222NLT
Pulse Electronics
- Inductance
- 2.2 µH
- Current
- 10 A
- DCR
- 12mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.601NLT
Pulse Electronics
- Inductance
- 600 nH
- Current
- 19 A
- DCR
- 4.3mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)

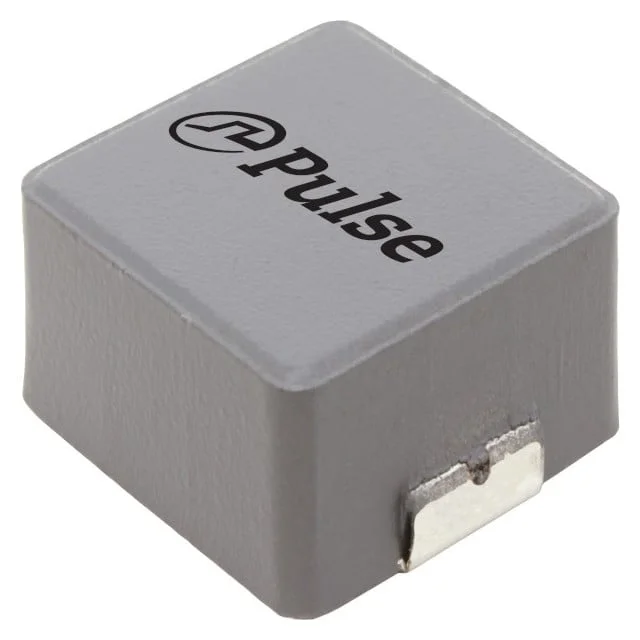

PM5404.821NLT
Pulse Electronics
- Inductance
- 820 nH
- Current
- 16.5 A
- DCR
- 4.9mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.333NLT
Pulse Electronics
- Inductance
- 33 µH
- Current
- 2 A
- DCR
- 200mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.681NLT
Pulse Electronics
- Inductance
- 680 nH
- Current
- 18 A
- DCR
- 4.5mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.492NLT
Pulse Electronics
- Inductance
- 4.9 µH
- Current
- 6.3 A
- DCR
- 38mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.153NLT
Pulse Electronics
- Inductance
- 15 µH
- Current
- 3.5 A
- DCR
- 92mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.123NLT
Pulse Electronics
- Inductance
- 12 µH
- Current
- 3.5 A
- DCR
- 80mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.471NLT
Pulse Electronics
- Inductance
- 470 nH
- Current
- 22 A
- DCR
- 3.9mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.221NLT
Pulse Electronics
- Inductance
- 220 nH
- Current
- 25 A
- DCR
- 1.9mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.182NLT
Pulse Electronics
- Inductance
- 1.8 µH
- Current
- 12 A
- DCR
- 11mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.151NLT
Pulse Electronics
- Inductance
- 150 nH
- Current
- 30 A
- DCR
- 1.7mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.423NLT
Pulse Electronics
- Inductance
- 42 µH
- Current
- 2 A
- DCR
- 245mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.401NLT
Pulse Electronics
- Inductance
- 400 nH
- Current
- 23 A
- DCR
- 3.7mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.111NLT
Pulse Electronics
- Inductance
- 110 nH
- Current
- 32 A
- DCR
- 780µOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.472NLT
Pulse Electronics
- Inductance
- 4.7 µH
- Current
- 6.5 A
- DCR
- 30.8mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.682NLT
Pulse Electronics
- Inductance
- 6.8 µH
- Current
- 5.5 A
- DCR
- 51.5mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.122NLT
Pulse Electronics
- Inductance
- 1.2 µH
- Current
- 14 A
- DCR
- 7.5mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.561NLT
Pulse Electronics
- Inductance
- 560 nH
- Current
- 20 A
- DCR
- 4.2mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.331NLT
Pulse Electronics
- Inductance
- 330 nH
- Current
- 25 A
- DCR
- 3mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.101NLT
Pulse Electronics
- Inductance
- 100 nH
- Current
- 32 A
- DCR
- 780µOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.103NLT
Pulse Electronics
- Inductance
- 10 µH
- Current
- 3.8 A
- DCR
- 69mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
PM5404.473NLT
Pulse Electronics
- Inductance
- 47 µH
- Current
- 1.9 A
- DCR
- 330mOhm Max
- Size
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
PM5404.562NLT Pulse Electronics | 5.6 µH | 6 A | 49mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.563NLT Pulse Electronics | 56 µH | 1.6 A | 396mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.222NLT Pulse Electronics | 2.2 µH | 10 A | 12mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.601NLT Pulse Electronics | 600 nH | 19 A | 4.3mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.821NLT Pulse Electronics | 820 nH | 16.5 A | 4.9mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.333NLT Pulse Electronics | 33 µH | 2 A | 200mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.681NLT Pulse Electronics | 680 nH | 18 A | 4.5mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.492NLT Pulse Electronics | 4.9 µH | 6.3 A | 38mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.153NLT Pulse Electronics | 15 µH | 3.5 A | 92mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.123NLT Pulse Electronics | 12 µH | 3.5 A | 80mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.471NLT Pulse Electronics | 470 nH | 22 A | 3.9mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.221NLT Pulse Electronics | 220 nH | 25 A | 1.9mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.182NLT Pulse Electronics | 1.8 µH | 12 A | 11mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.151NLT Pulse Electronics | 150 nH | 30 A | 1.7mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.423NLT Pulse Electronics | 42 µH | 2 A | 245mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.401NLT Pulse Electronics | 400 nH | 23 A | 3.7mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.111NLT Pulse Electronics | 110 nH | 32 A | 780µOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.472NLT Pulse Electronics | 4.7 µH | 6.5 A | 30.8mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.682NLT Pulse Electronics | 6.8 µH | 5.5 A | 51.5mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.122NLT Pulse Electronics | 1.2 µH | 14 A | 7.5mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.561NLT Pulse Electronics | 560 nH | 20 A | 4.2mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.331NLT Pulse Electronics | 330 nH | 25 A | 3mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.101NLT Pulse Electronics | 100 nH | 32 A | 780µOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.103NLT Pulse Electronics | 10 µH | 3.8 A | 69mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard | |
PM5404.473NLT Pulse Electronics | 47 µH | 1.9 A | 330mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | Nonstandard |
