Series: SP75
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 SP75-151K CODACA | 150 µH | 1.05 A | 462mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |
 SP75-680K CODACA | 68 µH | 1.51 A | 240mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |
 SP75-100K CODACA | 10 µH | 4.21 A | 37.6mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |

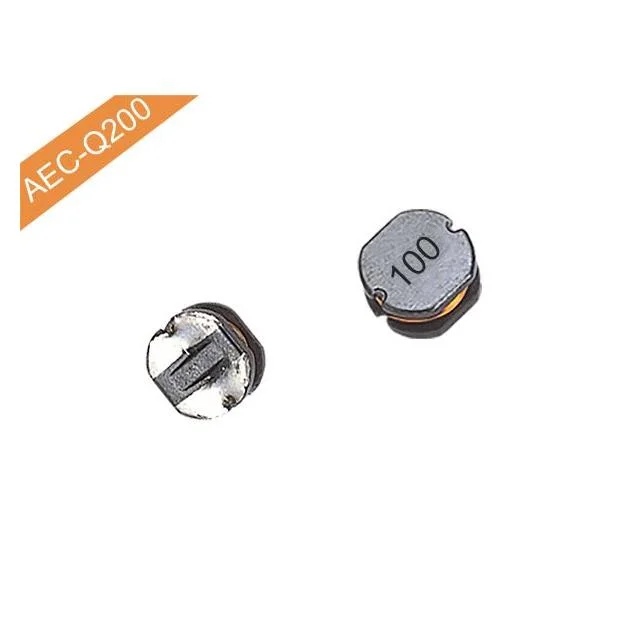

 SP75-102K CODACA | 1 mH | 380 mA | 2.987Ohm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |
 SP75-470K CODACA | 47 µH | 1.87 A | 141mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |
 SP75-180K CODACA | 18 µH | 3.07 A | 62.4mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |
 SP75-471K CODACA | 470 µH | 0.58 A | 149.5mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD | |
 SP75-121K CODACA | 120 µH | 1.09 A | 360mOhm Max | 0.307 L x 0.276 W (7.80mm x 7.00mm) | 2-SMD |
