744766147
Würth Elektronik
- Inductance
- 47 µH
- Current
- 140 mA
- DCR
- 5Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: WE-GF
Browse series tables and compare the available specifications.
WE-GF
74476420
Würth Elektronik
- Inductance
- 100 µH
- Current
- 40 mA
- DCR
- 11Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
74476401
Würth Elektronik
- Inductance
- 1 µH
- Current
- 400 mA
- DCR
- 700mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)

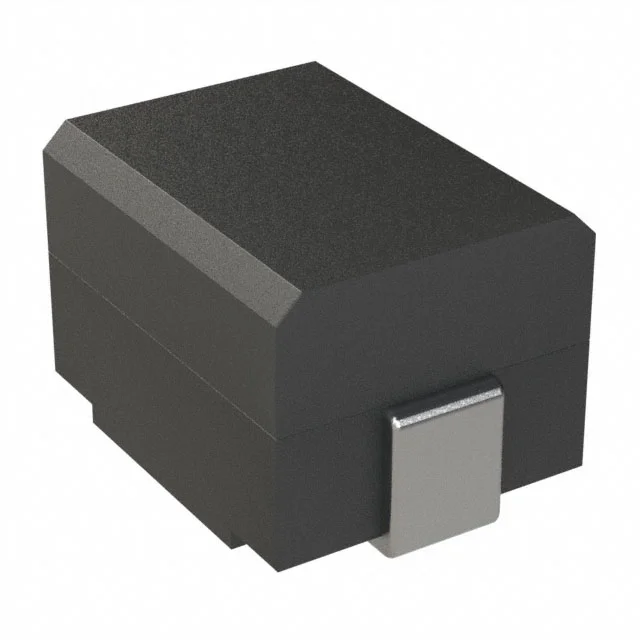

74476410
Würth Elektronik
- Inductance
- 10 µH
- Current
- 150 mA
- DCR
- 2.1Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744766001
Würth Elektronik
- Inductance
- 100 nH
- Current
- 450 mA
- DCR
- 440mOhm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
74476406
Würth Elektronik
- Inductance
- 6.8 µH
- Current
- 180 mA
- DCR
- 1.8Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)

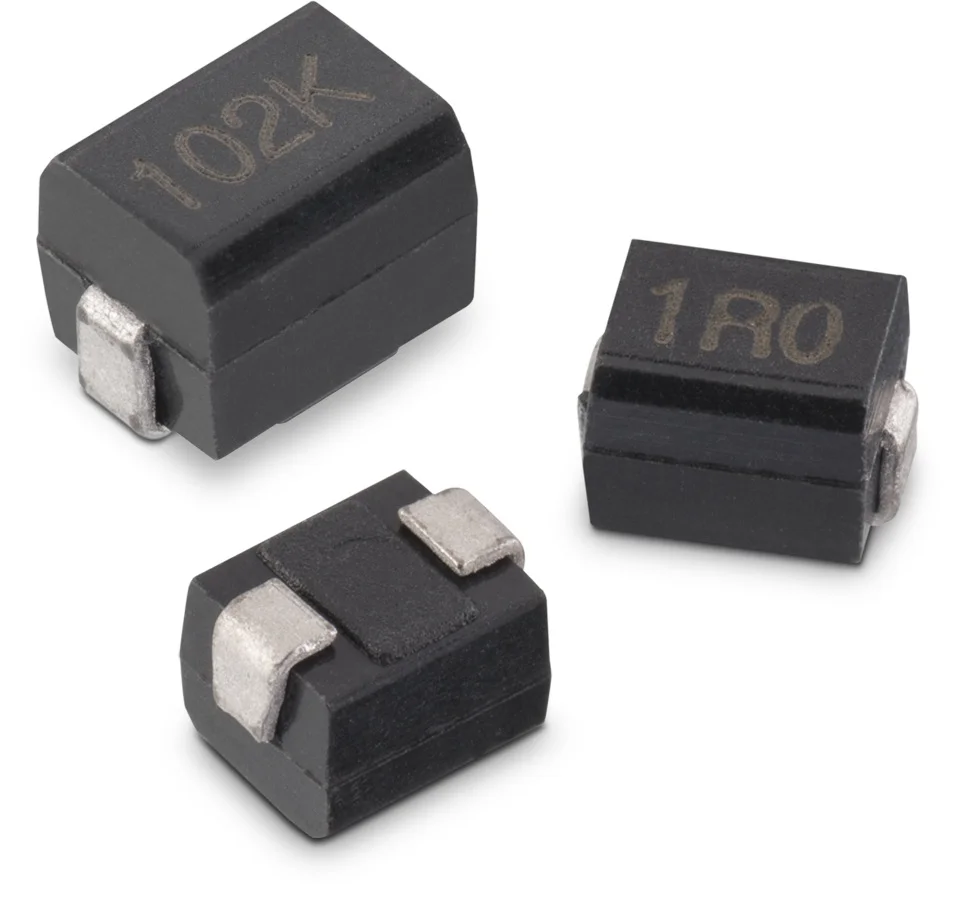

74476602
Würth Elektronik
- Inductance
- 2.2 µH
- Current
- 380 mA
- DCR
- 700mOhm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)

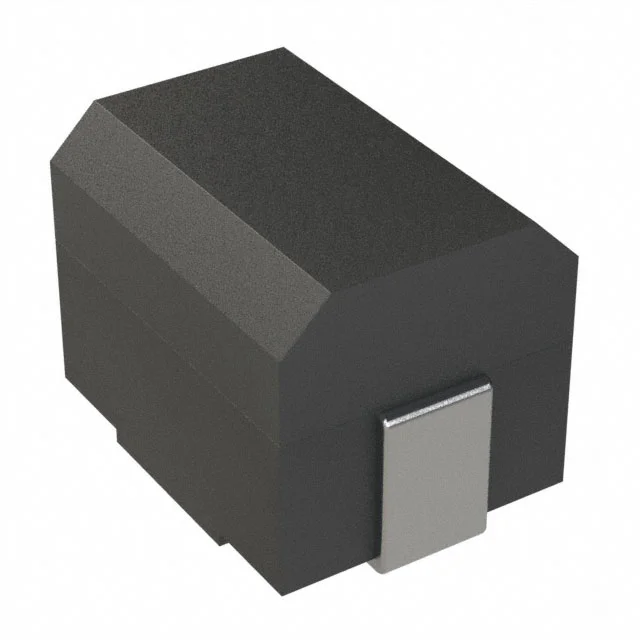

74476610
Würth Elektronik
- Inductance
- 10 µH
- Current
- 250 mA
- DCR
- 1.6Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
744764005
Würth Elektronik
- Inductance
- 560 nH
- Current
- 450 mA
- DCR
- 550mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764027
Würth Elektronik
- Inductance
- 2.7 µH
- Current
- 290 mA
- DCR
- 1.1Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744766156
Würth Elektronik
- Inductance
- 56 µH
- Current
- 135 mA
- DCR
- 5.5Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
744766168
Würth Elektronik
- Inductance
- 68 µH
- Current
- 130 mA
- DCR
- 6Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
744764115
Würth Elektronik
- Inductance
- 15 µH
- Current
- 130 mA
- DCR
- 2.8Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764006
Würth Elektronik
- Inductance
- 680 nH
- Current
- 450 mA
- DCR
- 600mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764139
Würth Elektronik
- Inductance
- 39 µH
- Current
- 65 mA
- DCR
- 6.4Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764002
Würth Elektronik
- Inductance
- 220 nH
- Current
- 450 mA
- DCR
- 320mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
7447640033
Würth Elektronik
- Inductance
- 330 nH
- Current
- 450 mA
- DCR
- 400mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764018
Würth Elektronik
- Inductance
- 1.8 µH
- Current
- 350 mA
- DCR
- 900mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
7447640082
Würth Elektronik
- Inductance
- 820 nH
- Current
- 450 mA
- DCR
- 650mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764039
Würth Elektronik
- Inductance
- 3.9 µH
- Current
- 250 mA
- DCR
- 1.3Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
74476625
Würth Elektronik
- Inductance
- 560 µH
- Current
- 50 mA
- DCR
- 30Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
744764012
Würth Elektronik
- Inductance
- 1.2 µH
- Current
- 390 mA
- DCR
- 750mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
744764168
Würth Elektronik
- Inductance
- 68 µH
- Current
- 50 mA
- DCR
- 9Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
7447660039
Würth Elektronik
- Inductance
- 390 nH
- Current
- 450 mA
- DCR
- 450mOhm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
744766218
Würth Elektronik
- Inductance
- 180 µH
- Current
- 100 mA
- DCR
- 9.5Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
744766147 Würth Elektronik | 47 µH | 140 mA | 5Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
74476420 Würth Elektronik | 100 µH | 40 mA | 11Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
74476401 Würth Elektronik | 1 µH | 400 mA | 700mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
74476410 Würth Elektronik | 10 µH | 150 mA | 2.1Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744766001 Würth Elektronik | 100 nH | 450 mA | 440mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
74476406 Würth Elektronik | 6.8 µH | 180 mA | 1.8Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
74476602 Würth Elektronik | 2.2 µH | 380 mA | 700mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
74476610 Würth Elektronik | 10 µH | 250 mA | 1.6Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
744764005 Würth Elektronik | 560 nH | 450 mA | 550mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764027 Würth Elektronik | 2.7 µH | 290 mA | 1.1Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744766156 Würth Elektronik | 56 µH | 135 mA | 5.5Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
744766168 Würth Elektronik | 68 µH | 130 mA | 6Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
744764115 Würth Elektronik | 15 µH | 130 mA | 2.8Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764006 Würth Elektronik | 680 nH | 450 mA | 600mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764139 Würth Elektronik | 39 µH | 65 mA | 6.4Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764002 Würth Elektronik | 220 nH | 450 mA | 320mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
7447640033 Würth Elektronik | 330 nH | 450 mA | 400mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764018 Würth Elektronik | 1.8 µH | 350 mA | 900mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
7447640082 Würth Elektronik | 820 nH | 450 mA | 650mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764039 Würth Elektronik | 3.9 µH | 250 mA | 1.3Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
74476625 Würth Elektronik | 560 µH | 50 mA | 30Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
744764012 Würth Elektronik | 1.2 µH | 390 mA | 750mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
744764168 Würth Elektronik | 68 µH | 50 mA | 9Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
7447660039 Würth Elektronik | 390 nH | 450 mA | 450mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
744766218 Würth Elektronik | 180 µH | 100 mA | 9.5Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) |
