146 datasheets found from 3L Coils

0.15 µH• 38 A

0.15 µH• 14.3 A

0.15 µH• 13.9 A

0.22 µH• 33 A

0.22 µH• 7.5 A

0.24 µH• 6.8 A

0.33 µH• 28.5 A

0.33 µH• 27.5 A

0.33 µH• 20 A

0.47 µH• 4.2 A

0.47 µH• 4.2 A

0.47 µH• 4.6 A

0.47 µH• 5.2 A

0.47 µH• 3 A

0.47 µH• 8 A

0.47 µH• 9 A

0.47 µH• 10 A

0.47 µH• 10.1 A

0.47 µH• 13.7 A

0.47 µH• 12 A

0.56 µH• 22 A

0.56 µH• 23 A

0.68 µH• 19.5 A

0.68 µH• 5.5 A

0.68 µH• 10 A

0.68 µH• 22.5 A

0.82 µH• 16 A

0.9 µH• 8.2 A

1 µH• 16.1 A

1.5 µH• 3.4 A

Product	Inductance	Current	DCR	Size	Package	Actions
BTU0503-R15M 3L Coils	0.15 µH	38 A	0.9mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF

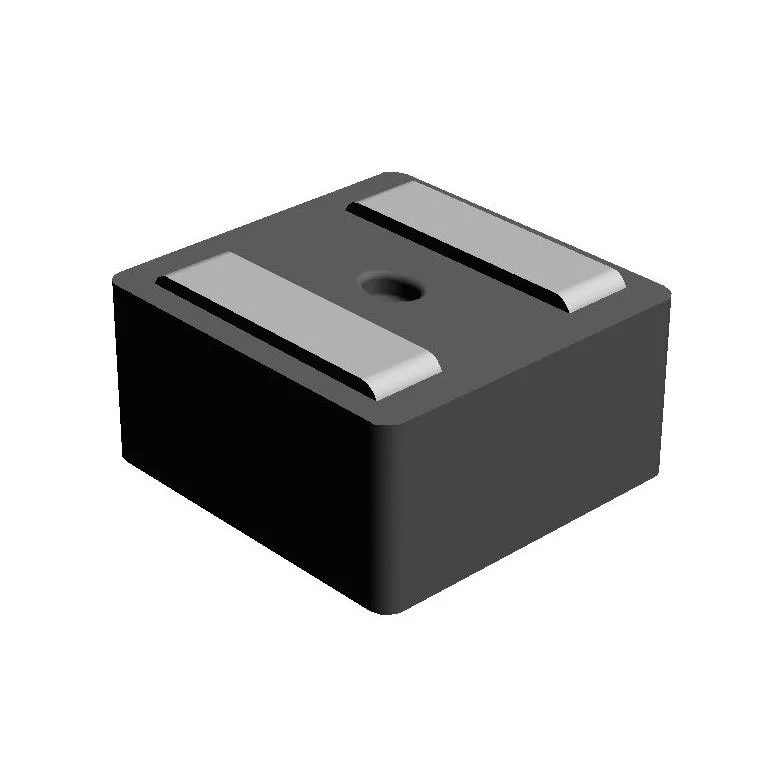

TUP0531W-R15M 3L Coils	0.15 µH	14.3 A	2.31mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
TUP0521W-R15M 3L Coils	0.15 µH	13.9 A	4.6mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
BTU0503-R22M 3L Coils	0.22 µH	33 A	1.55mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
HPI0312-R22M 3L Coils	0.22 µH	7.5 A	12mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	-	View PDF

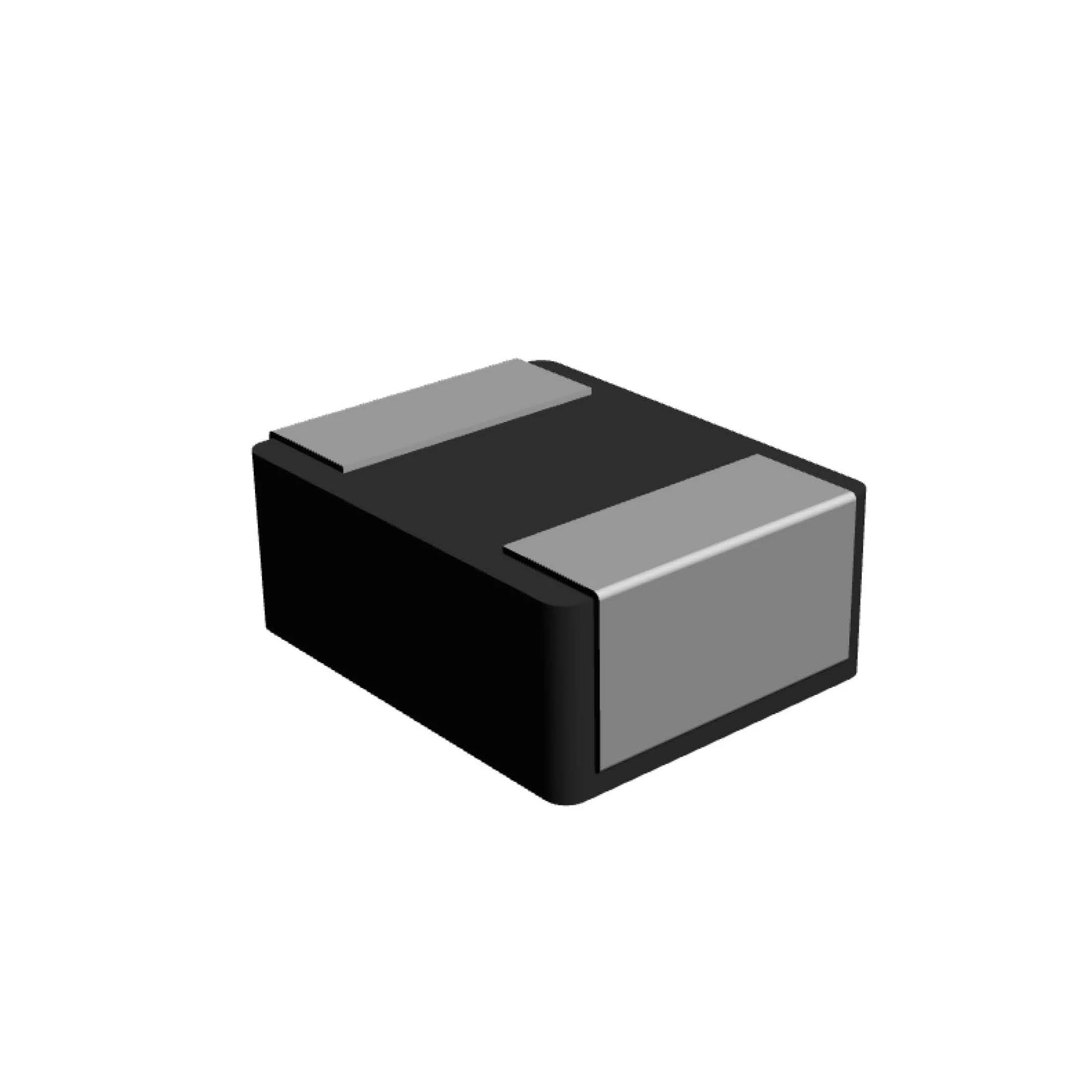

LHP252012P-R24M 3L Coils	0.24 µH	6.8 A	15mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	-	View PDF
BTU0503-R33M 3L Coils	0.33 µH	28.5 A	2.2mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
UPIF0804-R33M 3L Coils	0.33 µH	27.5 A	2.15mOhm Max	0.339" L x 0.319" W (8.60mm x 8.10mm)	-	View PDF

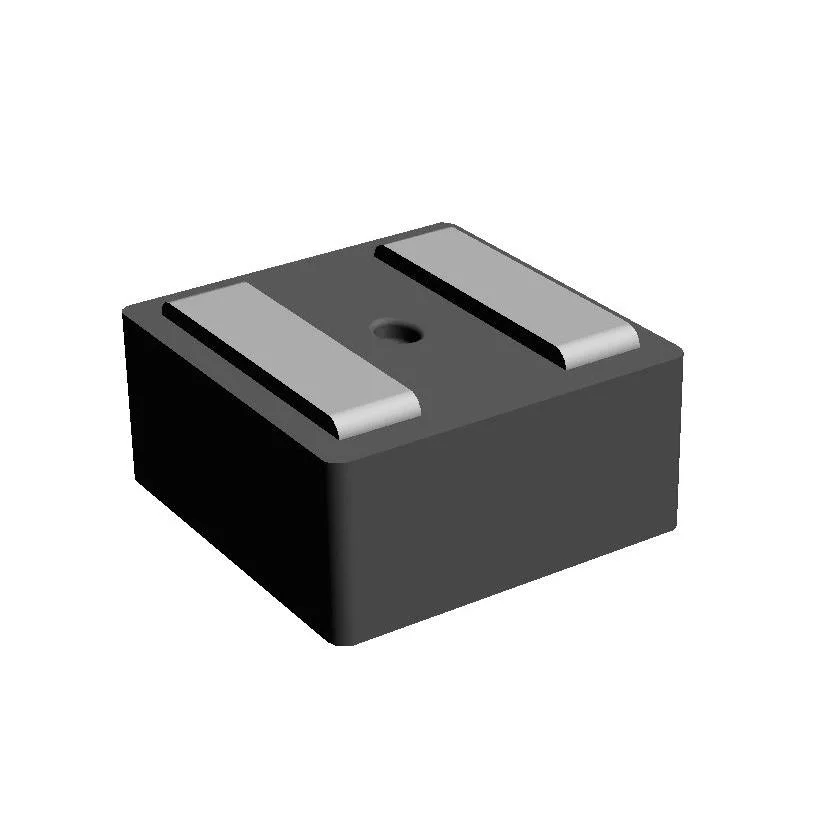

TUP0631W-R33M 3L Coils	0.33 µH	20 A	2.5mOhm Max	0.260" L x 0.252" W (6.60mm x 6.40mm)	-	View PDF
ALHP322512-R47M 3L Coils	0.47 µH	4.2 A	24mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	-	View PDF
LHP201612P-R47M 3L Coils	0.47 µH	4.2 A	28mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	-	View PDF
LHP252010P-R47M 3L Coils	0.47 µH	4.6 A	25mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	-	View PDF
LHP322512-R47M 3L Coils	0.47 µH	5.2 A	22mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	-	View PDF
HPI0310-R47M 3L Coils	0.47 µH	3 A	24mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	-	View PDF
HPI0402-R47M 3L Coils	0.47 µH	8 A	11.3mOhm Max	0.173" L x 0.157" W (4.40mm x 4.00mm)	-	View PDF

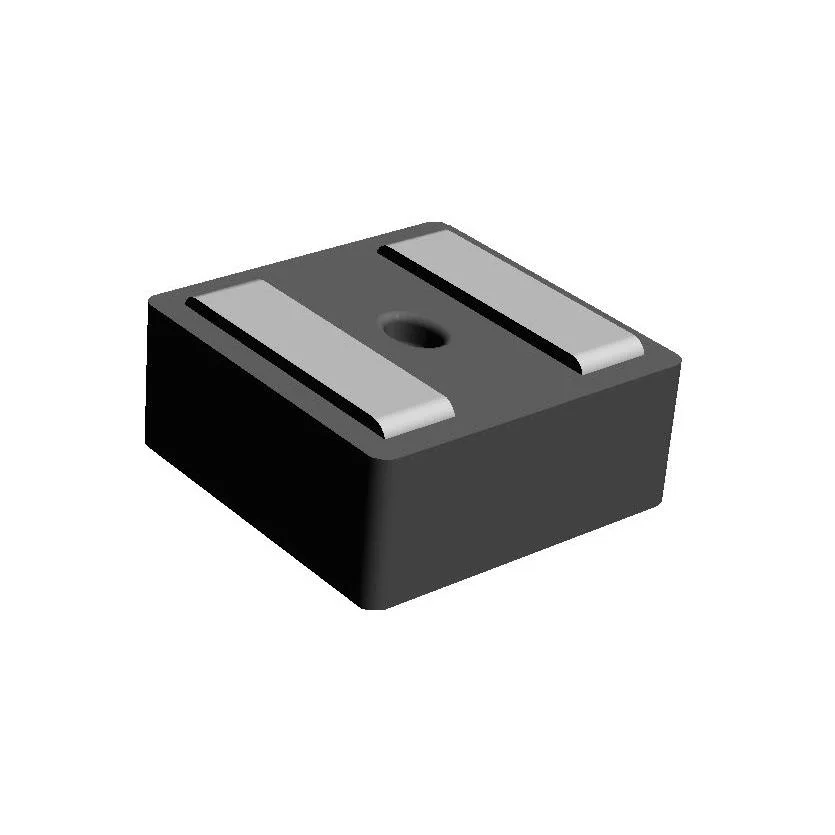

TUP0421W-R47M 3L Coils	0.47 µH	9 A	8.58mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	-	View PDF
TUP0403W-R47M 3L Coils	0.47 µH	10 A	7.26mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	-	View PDF
TUP0521W-R47M 3L Coils	0.47 µH	10.1 A	8.05mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
TUP0531W-R47M 3L Coils	0.47 µH	13.7 A	4.13mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF

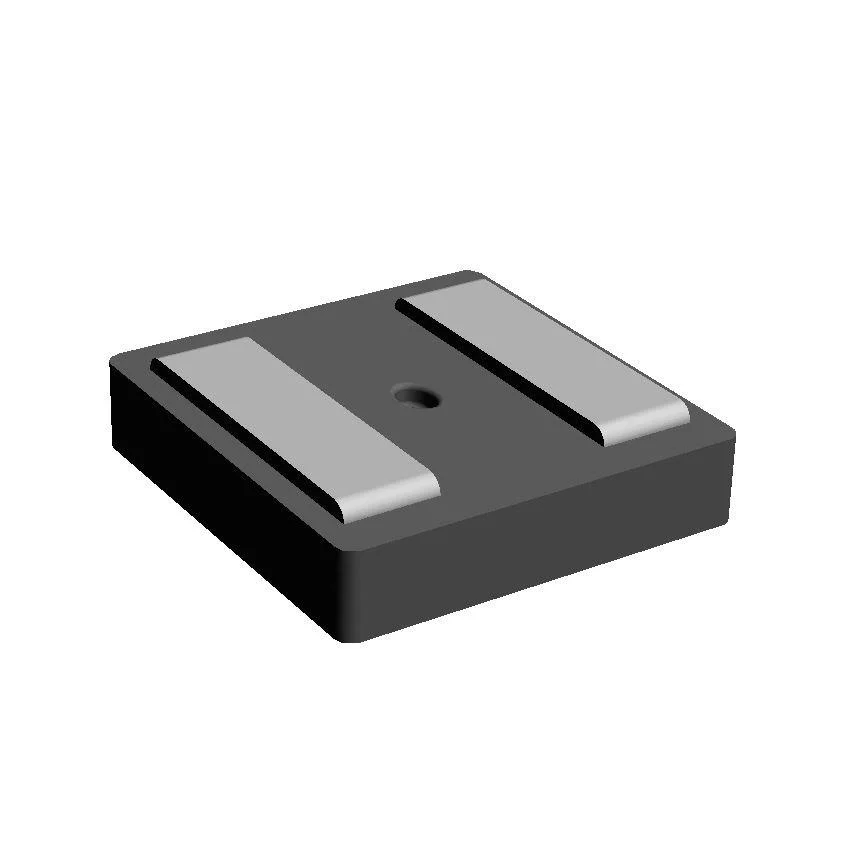

TUP0721W-R47M 3L Coils	0.47 µH	12 A	6.2mOhm Max	0.307" L x 0.299" W (7.80mm x 7.60mm)	-	View PDF
BTU0503-R56M 3L Coils	0.56 µH	22 A	3.6mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
TUP1031W-R56M 3L Coils	0.56 µH	23 A	2.75mOhm Max	0.469" L x 0.433" W (11.90mm x 11.00mm)	-	View PDF
BTU0503-R68M 3L Coils	0.68 µH	19.5 A	4.6mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF
HPI0302-R68M 3L Coils	0.68 µH	5.5 A	26mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	-	View PDF
TUP0721W-R68M 3L Coils	0.68 µH	10 A	9.2mOhm Max	0.307" L x 0.299" W (7.80mm x 7.60mm)	-	View PDF

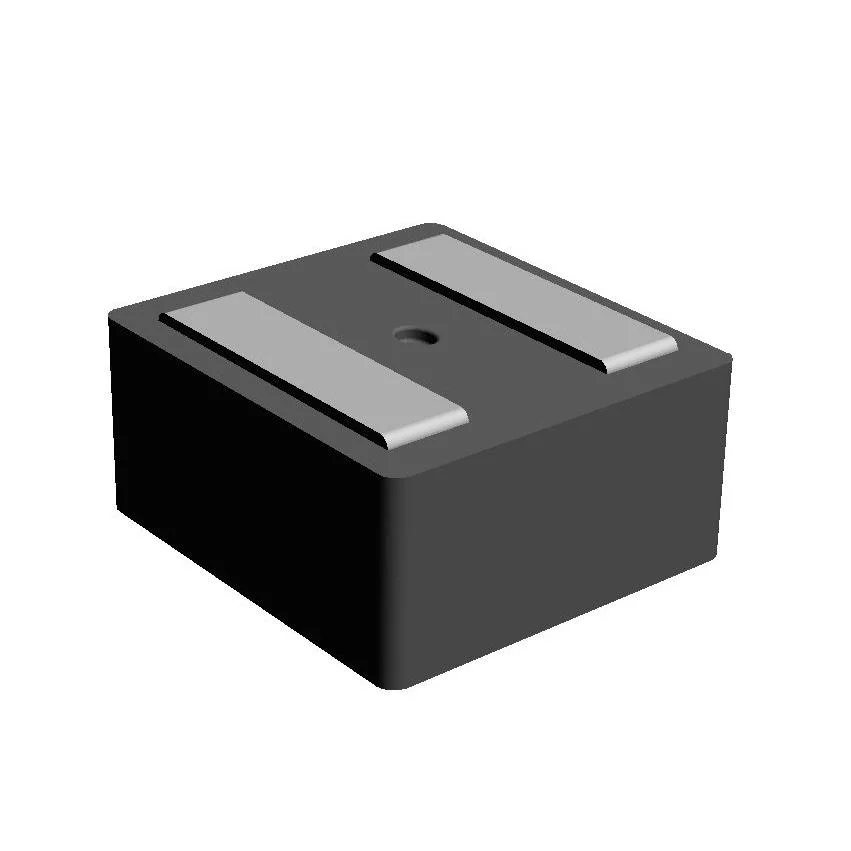

TUP1006W-R68M 3L Coils	0.68 µH	22.5 A	1.5mOhm Max	0.469" L x 0.433" W (11.90mm x 11.00mm)	-	View PDF
TUP0605W-R82M 3L Coils	0.82 µH	16 A	4.18mOhm Max	0.260" L x 0.252" W (6.60mm x 6.40mm)	-	View PDF
TUP0403W-R90M 3L Coils	0.9 µH	8.2 A	10.1mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	-	View PDF
ALHP322512-1R0M 3L Coils	1 µH	3.2 A	45mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	-	View PDF
ALHP322520-1R0M 3L Coils	1 µH	4 A	25mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	-	View PDF
ALHP252012-1R0M 3L Coils	1 µH	3 A	42mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	-	View PDF
LHP201610P-1R0M 3L Coils	1 µH	2.6 A	65mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	-	View PDF
LHP252012P-1R0M 3L Coils	1 µH	3.4 A	42mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	-	View PDF
LHP252010P-1R0M 3L Coils	1 µH	3.8 A	46mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	-	View PDF
LHP322520-1R0M 3L Coils	1 µH	4 A	24mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	-	View PDF

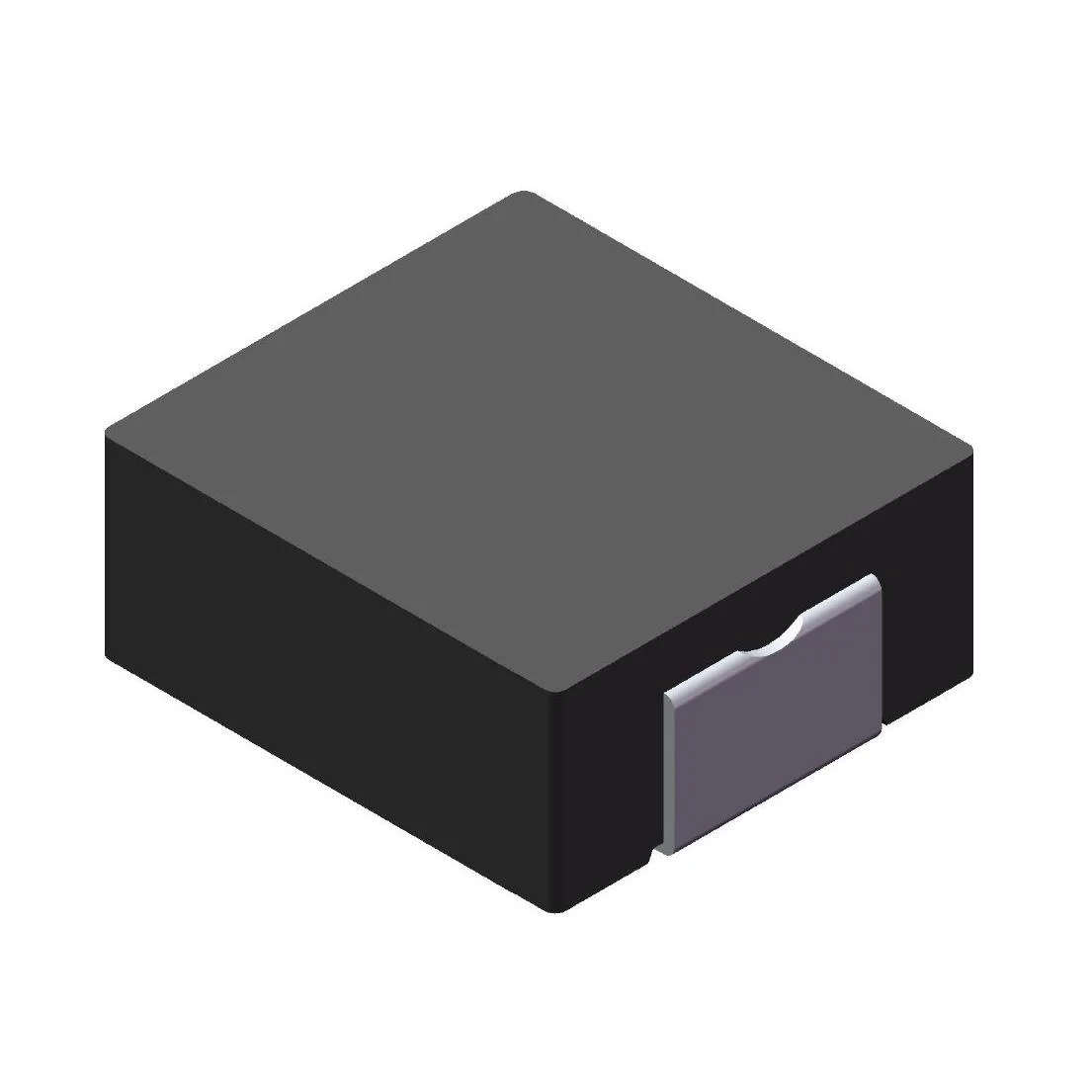

HPI0315-1R0M 3L Coils	1 µH	3.5 A	42mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	-	View PDF
HPI0302-1R0M 3L Coils	1 µH	4 A	30mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	-	View PDF
HPI0512-1R0M 3L Coils	1 µH	4.8 A	31.8mOhm Max	0.217" L x 0.205" W (5.50mm x 5.20mm)	-	View PDF

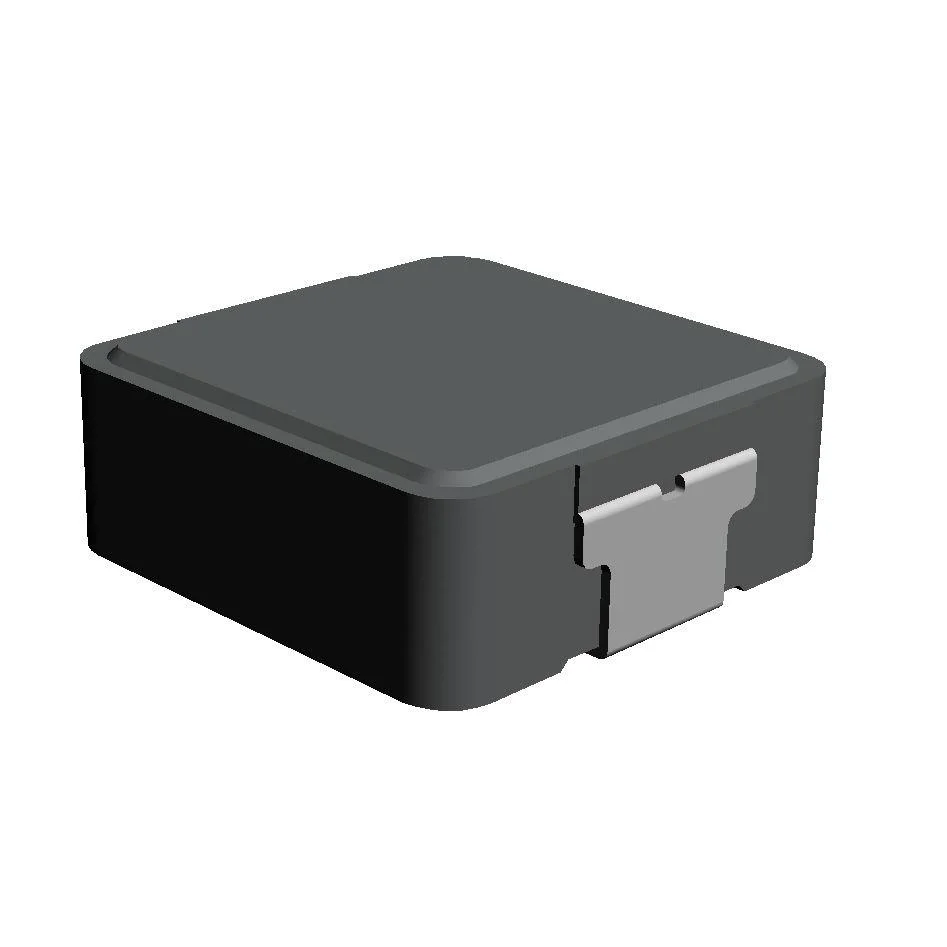

AUPI1004T-1R0M-G 3L Coils	1 µH	20 A	4.2mOhm Max	0.433" L x 0.394" W (11.00mm x 10.00mm)	-	View PDF
AUPI0603-1R0M 3L Coils	1 µH	12 A	8mOhm Max	0.280" L x 0.260" W (7.10mm x 6.60mm)	-	View PDF
AUPI1205T-1R0M-G 3L Coils	1 µH	25 A	2.6mOhm Max	0.528" L x 0.496" W (13.40mm x 12.60mm)	-	View PDF
AUPI1265T-1R0M-G 3L Coils	1 µH	28 A	2.3mOhm Max	0.528" L x 0.496" W (13.40mm x 12.60mm)	-	View PDF
TUP0421W-1R0M 3L Coils	1 µH	6.8 A	14.6mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	-	View PDF
TUP0403W-1R0M 3L Coils	1 µH	8 A	10.1mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	-	View PDF

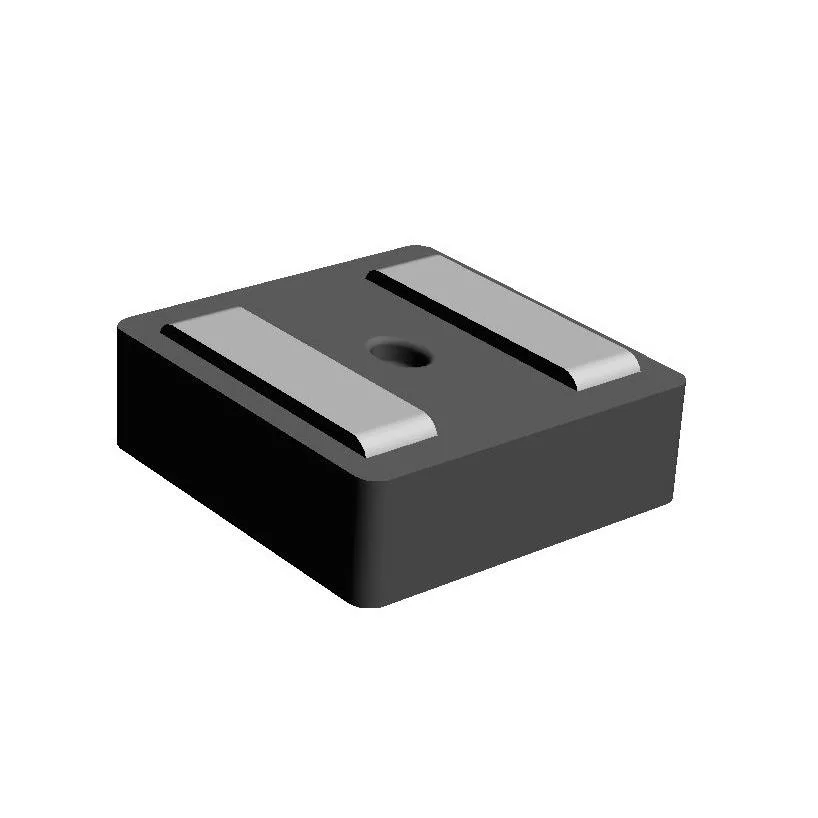

TUP0521W-1R0M 3L Coils	1 µH	7.5 A	13.8mOhm Max	0.217" L x 0.209" W (5.50mm x 5.30mm)	-	View PDF

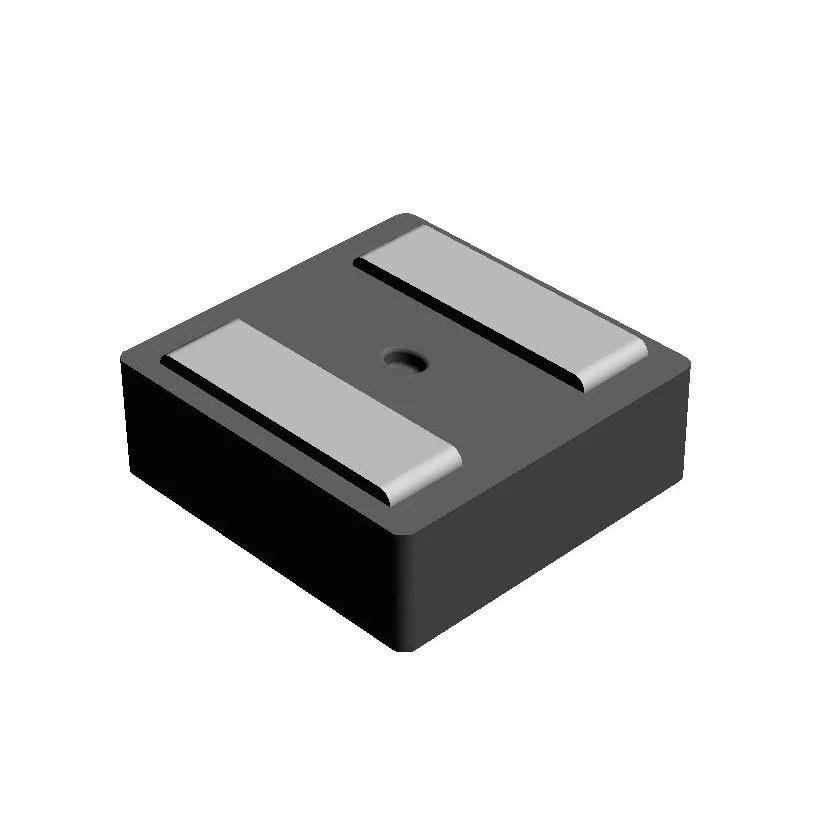

TUP0731W-1R0M 3L Coils	1 µH	16.1 A	5mOhm Max	0.307" L x 0.299" W (7.80mm x 7.60mm)	-	View PDF

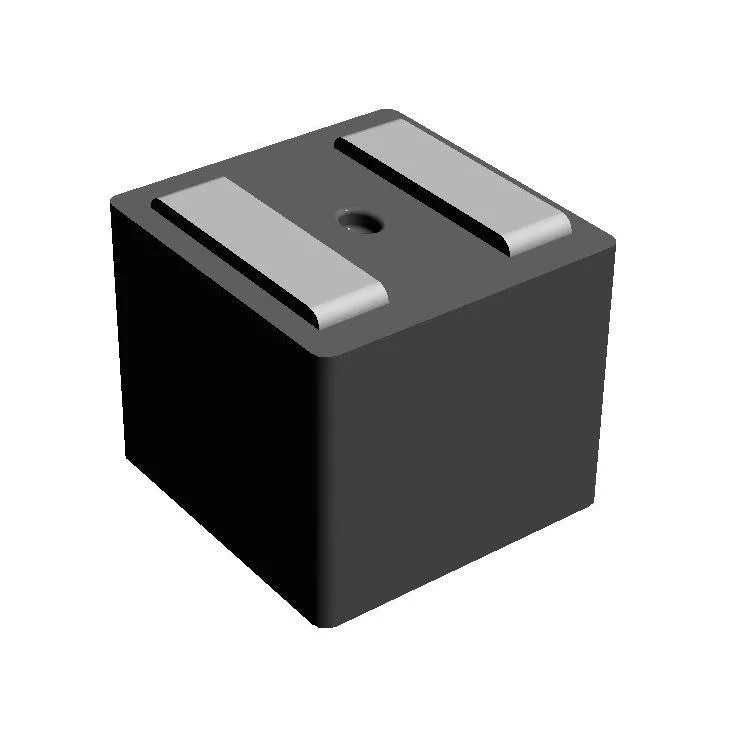

TUP0606W-1R0M 3L Coils	1 µH	16 A	4.4mOhm Max	0.260" L x 0.252" W (6.60mm x 6.40mm)	-	View PDF

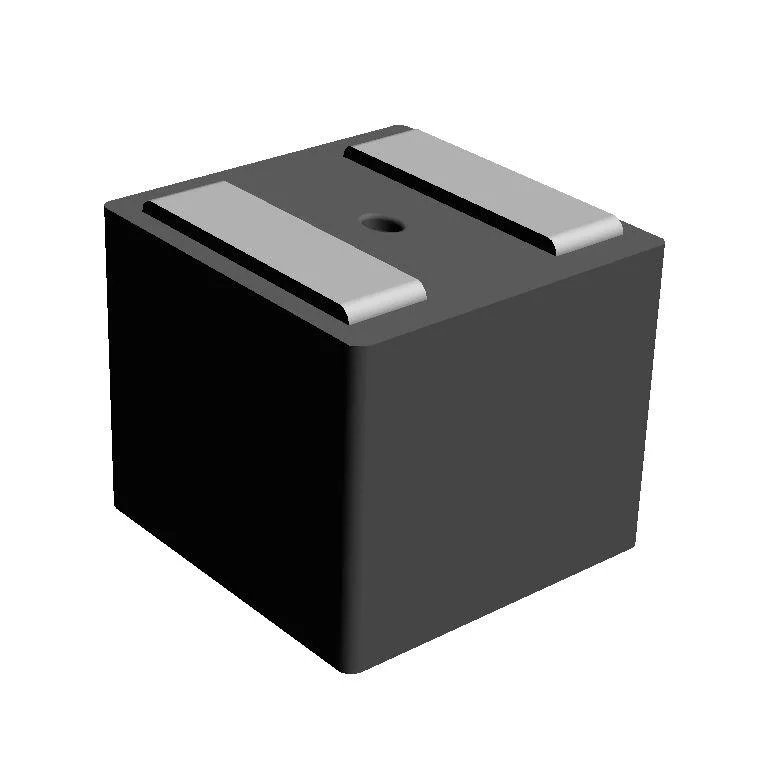

TUP0707W-1R0M 3L Coils	1 µH	20 A	2.81mOhm Max	0.307" L x 0.299" W (7.80mm x 7.60mm)	-	View PDF

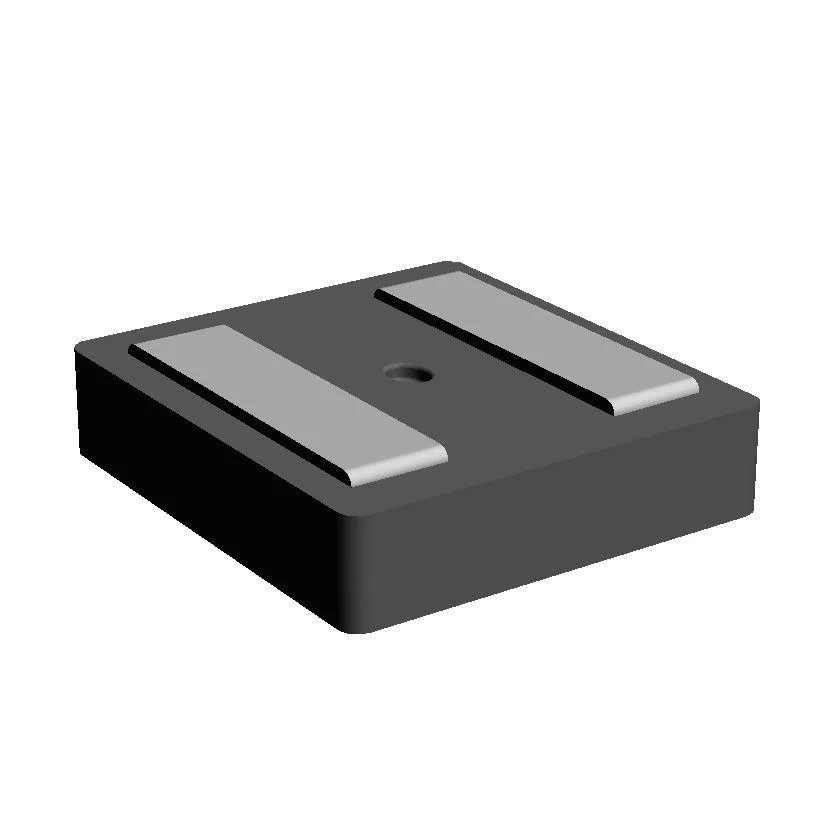

TUP1031W-1R0M 3L Coils	1 µH	16 A	4.95mOhm Max	0.469" L x 0.433" W (11.90mm x 11.00mm)	-	View PDF
ALHP322520-1R5M 3L Coils	1.5 µH	3.4 A	35mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	-	View PDF
