Description

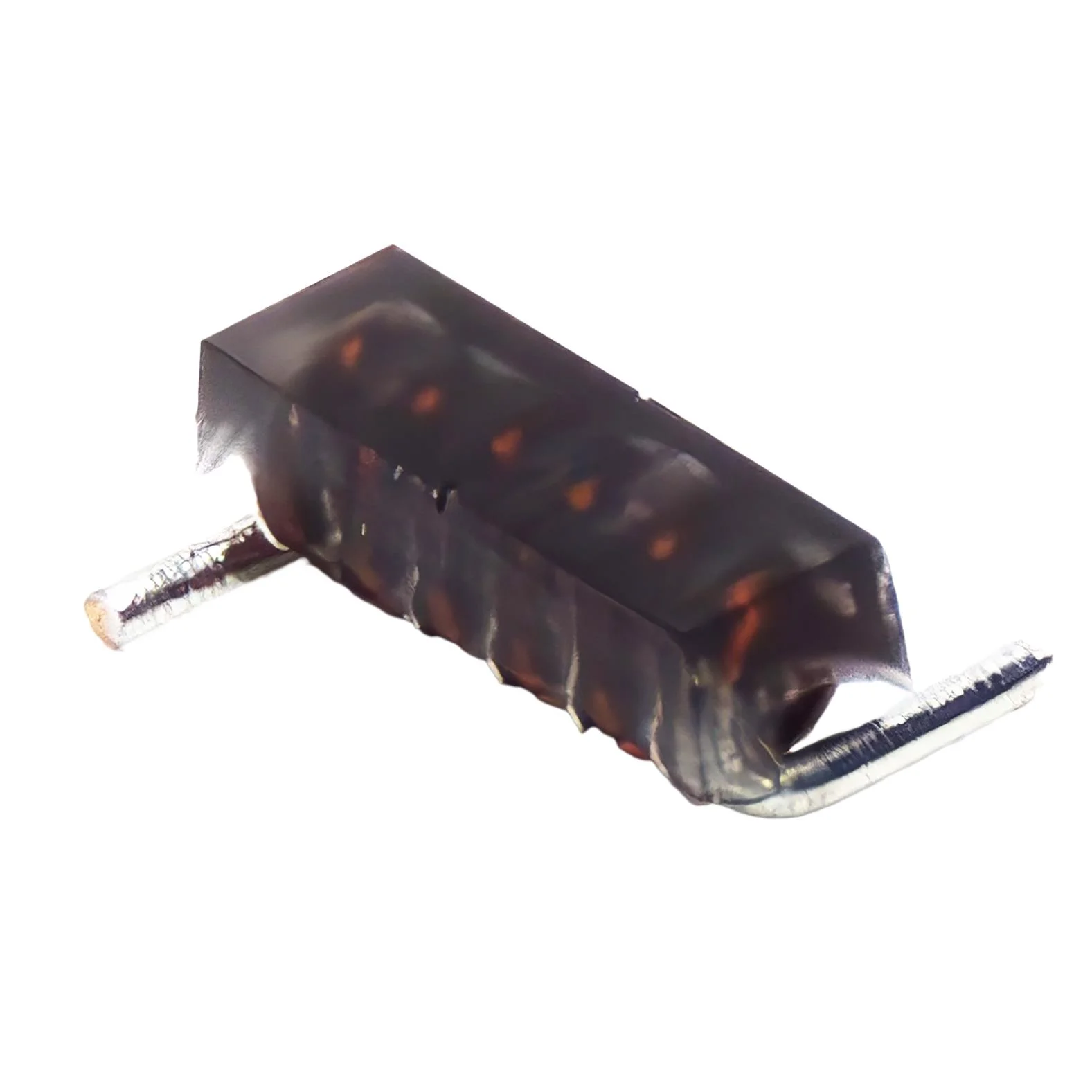

FIXED IND 9.85NH 1.6A 13 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC4013R-9N8J.
AC4013R-9N8J has an inductance value of 9.85 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC4013R-9N8J is rated for 1.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC4013R-9N8J lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC4013R-9N8J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC4013R-9N8J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 9.85 nH |
| Tolerance | ±5% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 13mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.159" L x 0.056" W (4.04mm x 1.42mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 9.85NH 1.6A 13 MOHM |
| Series | AC4013R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 100 @ 800MHz |
| Self Resonant Frequency | 5.2GHz |
| Inductance Test Frequency | 800 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.060" (1.52mm) |
