Description

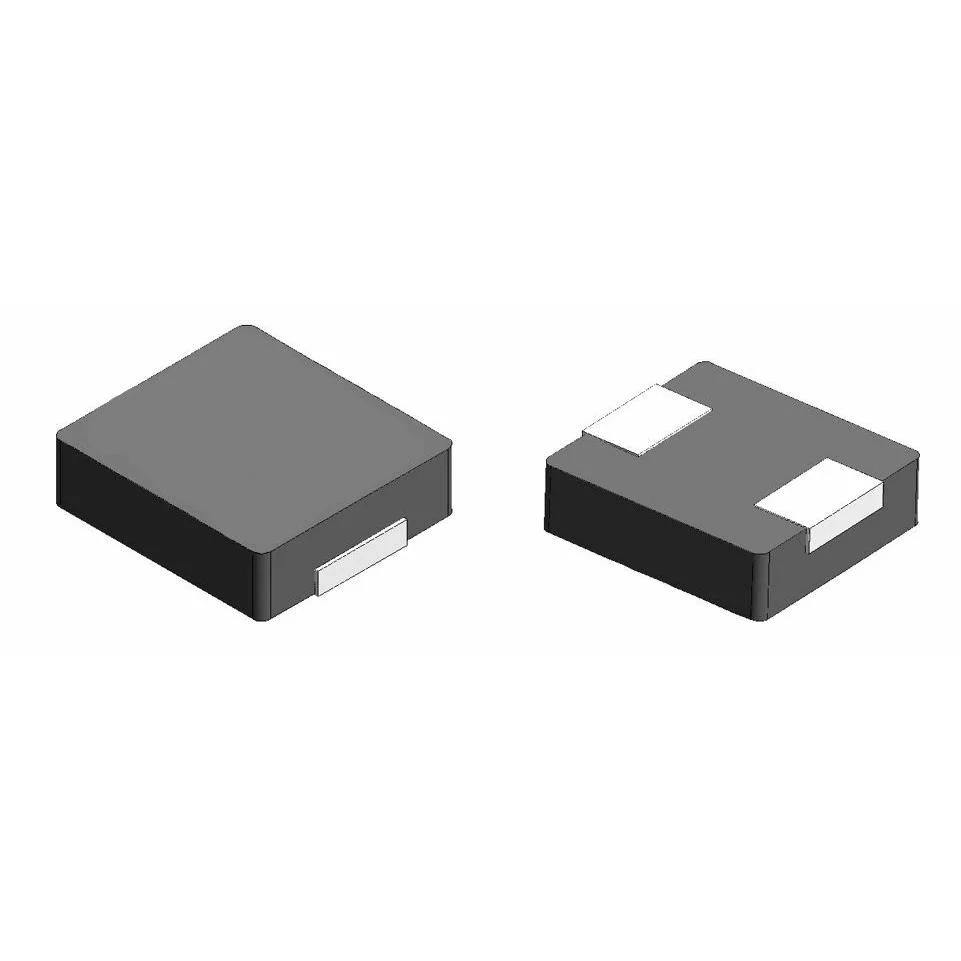

FIXED IND 330NH 21A 2.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AMPLH7025S-R33MT.
AMPLH7025S-R33MT has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AMPLH7025S-R33MT is rated for 21 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AMPLH7025S-R33MT lists a DC resistance of 2.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AMPLH7025S-R33MT uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AMPLH7025S-R33MT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 21 A |
| DC Resistance (DCR) | 2.4mOhm Max |
| Saturation Current | 33A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Abracon |
| Description | FIXED IND 330NH 21A 2.4 MOHM SMD |
| Series | AMPLH7025S |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Carbonyl Powder |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Features | Low DCR, Soft Saturation |
