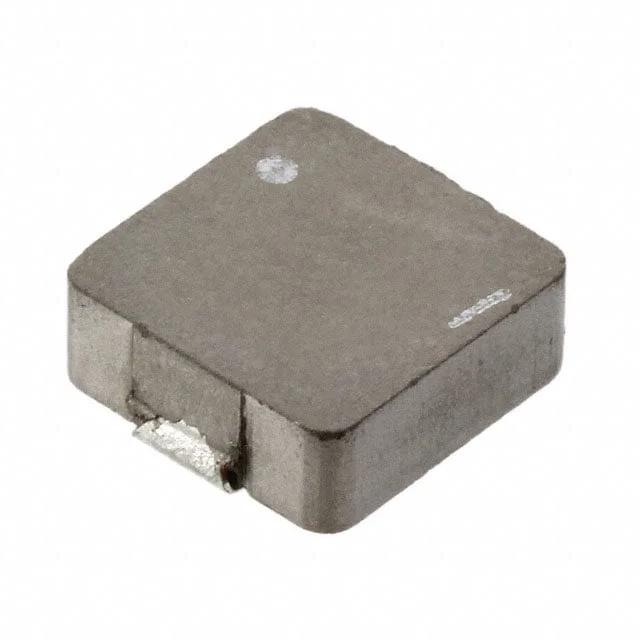

Description
FIXED IND 360NH 25.5A 1.05 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPC1040LR36C.
MPC1040LR36C has an inductance value of 360 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPC1040LR36C is rated for 25.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPC1040LR36C lists a DC resistance of 1.05mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPC1040LR36C uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPC1040LR36C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating | 25.5 A |
| DC Resistance (DCR) | 1.05mOhm Max |
| Saturation Current | 30A |
| Operating Temperature | -20°C ~ 120°C |
| Dimensions | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | KEMET |
| Description | FIXED IND 360NH 25.5A 1.05 MOHM |
| Series | MPC |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.157" (4.00mm) |
