Description

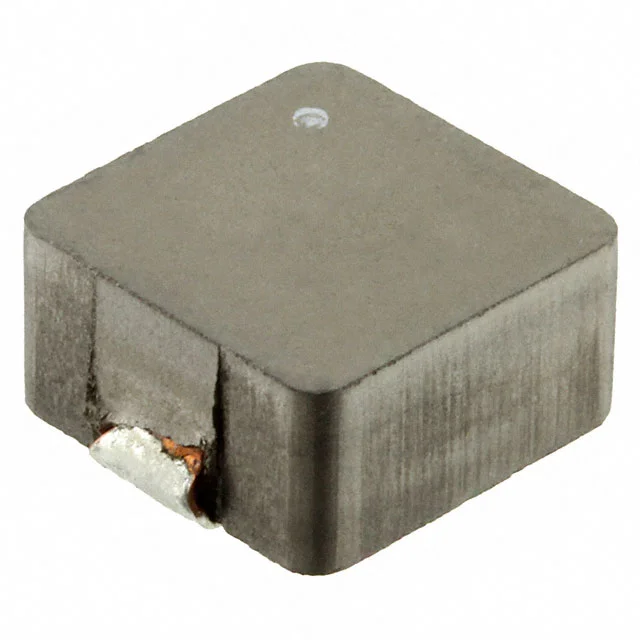

FIXED IND 360NH 32A 0.75 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPC1055LR36C.
MPC1055LR36C has an inductance value of 360 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPC1055LR36C is rated for 32 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPC1055LR36C lists a DC resistance of 0.75mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPC1055LR36C uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPC1055LR36C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating | 32 A |
| DC Resistance (DCR) | 0.75mOhm |
| Saturation Current | 35A |
| Operating Temperature | -20°C ~ 120°C |
| Dimensions | 0.461" L x 0.394" W (11.70mm x 10.00mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | KEMET |
| Description | FIXED IND 360NH 32A 0.75 MOHM |
| Series | MPC |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.217" (5.50mm) |
