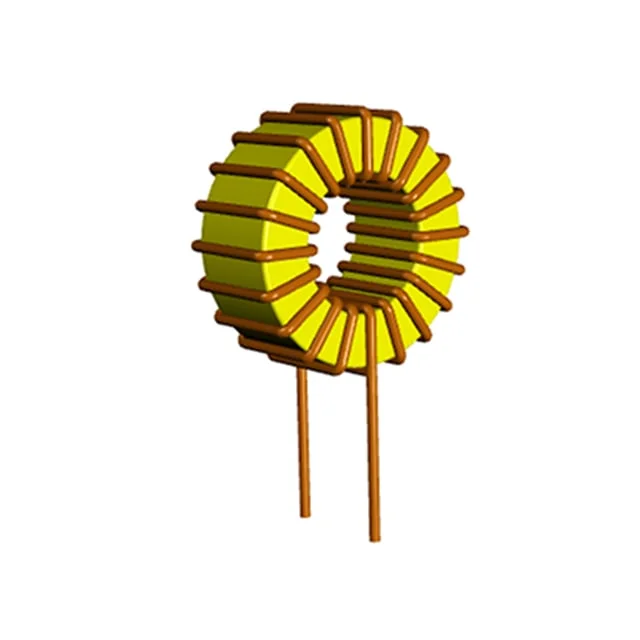

Description
FIXED IND 32UH 4A 21 MOHM TH
Specifications
Inductance
32 µH
Current Rating
4 A
DC Resistance (DCR)
21mOhm Max
Dimensions
-
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 32 µH |
| Tolerance | ±20% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 21mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 32UH 4A 21 MOHM TH |
| Series | ATCA |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical (Open) |
| heightMax | 0.945" L x 0.453" W (24.00mm x 11.50mm) |
| features | - |
