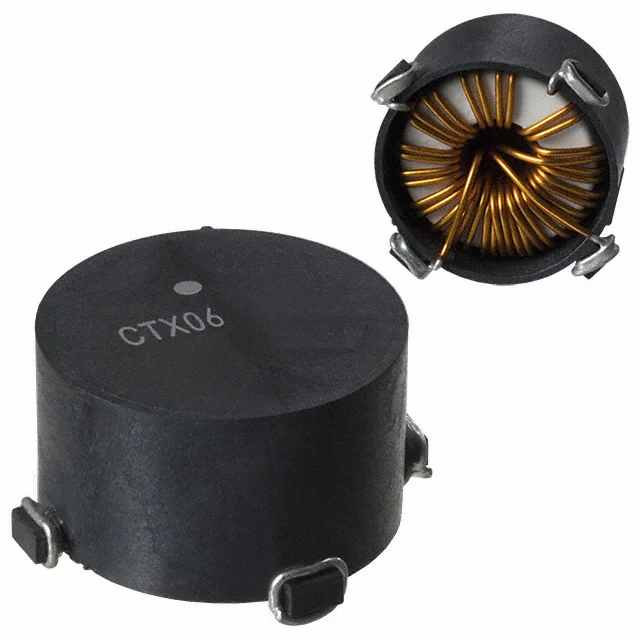

FIXED IND 22UH 8.5A 11.7 MOHM
| Inductance | 22 µH |
| Tolerance | ±0.25% |
| Current Rating | 8.5 A |
| DC Resistance (DCR) | 11.7mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 22UH 8.5A 11.7 MOHM |
| Series | CTX |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.484" (12.30mm) |
| features | - |
