Browse and download PDF datasheets for inductors from leading manufacturers.
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CTX06-14620 Eaton - Electronics Division | 47 µH | 7.1 A | 16.6mOhm Max | 0.984" L x 0.984" W (25.00mm x 25.00mm) | Nonstandard | |

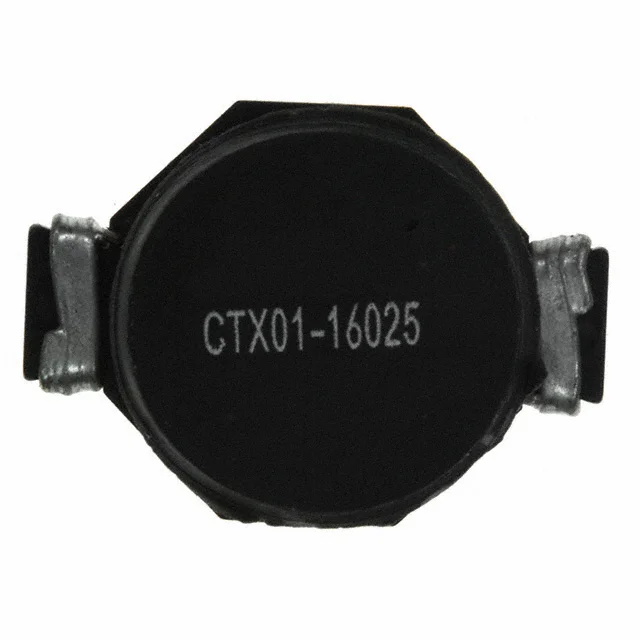

 CTX01-16025 Eaton - Electronics Division | 120 µH | 2 A | 62mOhm Max | 0.697" L x 0.506" W (17.70mm x 12.85mm) | Nonstandard | |
CTX47-5-R Eaton - Electronics Division | 47 µH | - | - | - | - | |
 CTX08-14729 Eaton - Electronics Division | 35 µH | - | - | - | - | |
CTX100-7-52-R Eaton - Electronics Division | 100 µH | 12 A | 16.7mOhm Max | 1.909" Dia x 0.858" W (48.50mm x 21.80mm) | Radial, Vertical (Open) | |
 CTX20-7-52LP-R Eaton - Electronics Division | 20 µH | 11.4 A | 11mOhm Max | 1.276" Dia (32.40mm) | Radial, Horizontal (Open) | |
 CTX06-14622 Eaton - Electronics Division | 22 µH | 8.5 A | 11.7mOhm Max | 0.984" L x 0.984" W (25.00mm x 25.00mm) | Nonstandard | |
 CTX20-1-52LP-R Eaton - Electronics Division | 20 µH | 1.8 A | 82.9mOhm Max | 0.358" Dia (9.10mm) | Radial, Horizontal (Open) | |
CTX20-2-52-R Eaton - Electronics Division | 20 µH | 3.2 A | 39.2mOhm Max | 0.492" Dia x 0.295" W (12.50mm x 7.50mm) | Radial, Vertical (Open) | |
CTX20-1-52M-R Eaton - Electronics Division | 20 µH | 1.8 A | 82.9mOhm Max | 0.370" L x 0.370" W (9.40mm x 9.40mm) | Radial, Horizontal, 4 Leads (Open) | |
CTX150-1-52LP-R Eaton - Electronics Division | 150 µH | 2.1 A | 162mOhm Max | 0.815" Dia (20.70mm) | Radial, Horizontal (Open) | |
 CTX10-1-52M-R Eaton - Electronics Division | 10 µH | 2.4 A | 48.1mOhm Max | 0.370" L x 0.370" W (9.40mm x 9.40mm) | Radial, Horizontal, 4 Leads (Open) | |
 CTX10-1-52LP-R Eaton - Electronics Division | 10 µH | 2.4 A | 48.1mOhm Max | 0.339" Dia (8.60mm) | Radial, Horizontal (Open) | |
CTX20-5-52LP-R Eaton - Electronics Division | 20 µH | 7.8 A | 26mOhm Max | 0.965" Dia (24.50mm) | Radial, Horizontal (Open) | |
CTX250-1-52LP-R Eaton - Electronics Division | 250 µH | 1.9 A | 221mOhm Max | 0.823" Dia (20.90mm) | Radial, Horizontal (Open) | |
 CTX10-2-52M-R Eaton - Electronics Division | 10 µH | 4.7 A | 18.3mOhm Max | 0.535" L x 0.449" W (13.60mm x 11.40mm) | Radial, Horizontal, 4 Leads (Open) | |
 CTX10-7-52-R Eaton - Electronics Division | 10 µH | 11.4 A | 8mOhm Max | 1.012" Dia x 0.709" W (25.70mm x 18.00mm) | Radial, Vertical (Open) | |
 CTX150-1-52M-R Eaton - Electronics Division | 150 µH | 2.1 A | 162mOhm Max | 0.772" L x 0.634" W (19.60mm x 16.10mm) | Radial, Vertical, 4 Leads (Open) | |
 CTX10-5-52M-R Eaton - Electronics Division | 10 µH | 8.7 A | 10.4mOhm Max | 1.220" L x 0.630" W (31.00mm x 16.00mm) | Radial, Vertical, 4 Leads (Open) | |
CTX150-2-52-R Eaton - Electronics Division | 150 µH | 4.3 A | 71.9mOhm Max | 1.205" Dia x 0.441" W (30.60mm x 11.20mm) | Radial, Vertical (Open) | |
CTX500-1-52-R Eaton - Electronics Division | 500 µH | 1.7 A | 361mOhm Max | 0.945" Dia x 0.602" W (24.00mm x 15.30mm) | Radial, Vertical (Open) | |
CTX20-5-52M-R Eaton - Electronics Division | 20 µH | 7.8 A | 26mOhm Max | 1.394" L x 0.854" W (35.40mm x 21.70mm) | Radial, Vertical, 4 Leads (Open) | |
CTX500-1-52M-R Eaton - Electronics Division | 500 µH | 1.7 A | 361mOhm Max | 1.394" L x 0.854" W (35.40mm x 21.70mm) | Radial, Vertical, 4 Leads (Open) | |
 CTX10-7-52LP-R Eaton - Electronics Division | 10 µH | 11.4 A | 8mOhm Max | 1.012" Dia (25.70mm) | Radial, Horizontal (Open) | |
 CTX10-7-52M-R Eaton - Electronics Division | 10 µH | 11.4 A | 8mOhm Max | 1.394" L x 0.854" W (35.40mm x 21.70mm) | Radial, Vertical, 4 Leads (Open) |
