Description

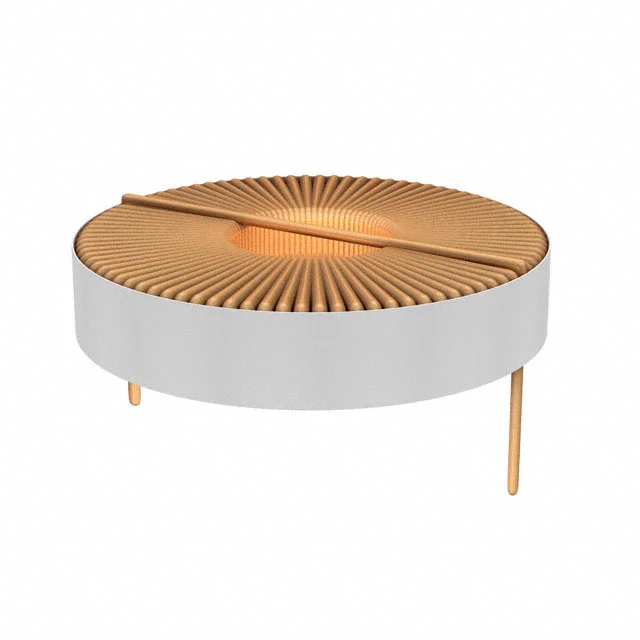

FIXED IND 10UH 16.9A 5.1 MOHM TH
Specifications
Inductance
10 µH
Current Rating
16.9 A
DC Resistance (DCR)
5.1mOhm Max
Dimensions
1.339" Dia (34.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 16.9 A |
| DC Resistance (DCR) | 5.1mOhm Max |
| saturationCurrent | 20.9A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 1.339" Dia (34.00mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 10UH 16.9A 5.1 MOHM TH |
| Series | CTX |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.843" (21.40mm) |
| features | - |
