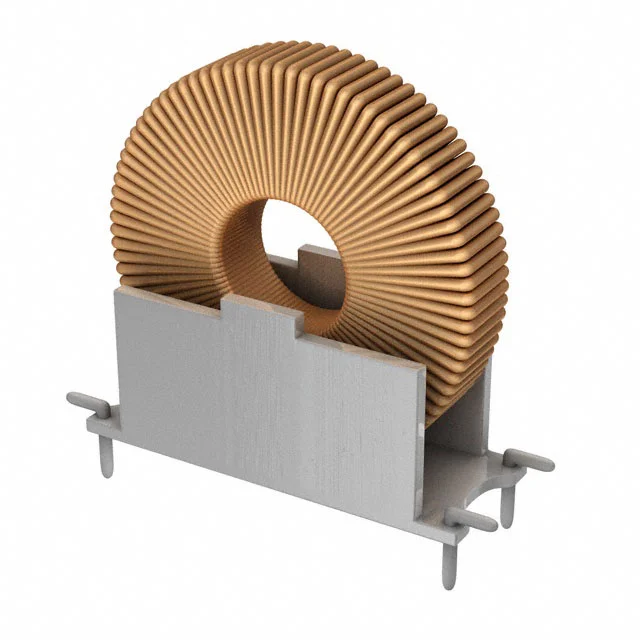

FIXED IND 10UH 11.4A 8 MOHM TH
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 8mOhm Max |
| saturationCurrent | 13.5A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 1.394" L x 0.854" W (35.40mm x 21.70mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 10UH 11.4A 8 MOHM TH |
| Series | CTX |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 1.051" (26.70mm) |
| features | - |
