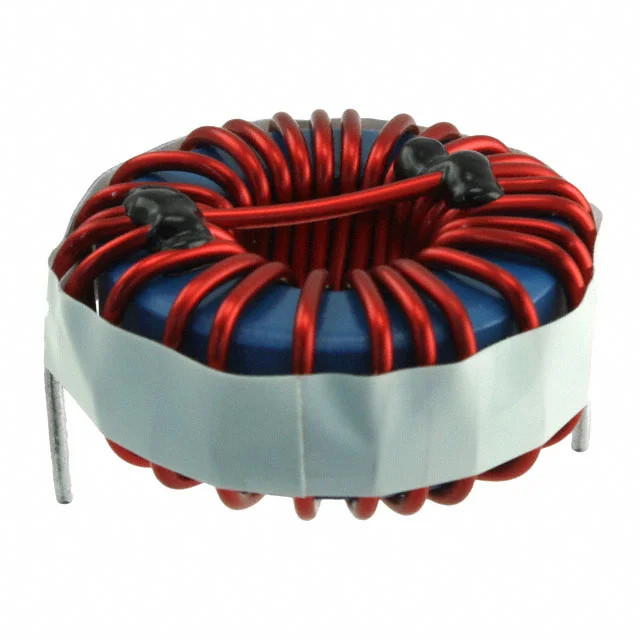

FIXED IND 100UH 17.6A 10.9 MOHM
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 17.6 A |
| DC Resistance (DCR) | 10.9mOhm Max |
| saturationCurrent | 13A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 2.244" Dia (57.00mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 100UH 17.6A 10.9 MOHM |
| Series | CTX |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 1.083" (27.50mm) |
| features | - |
