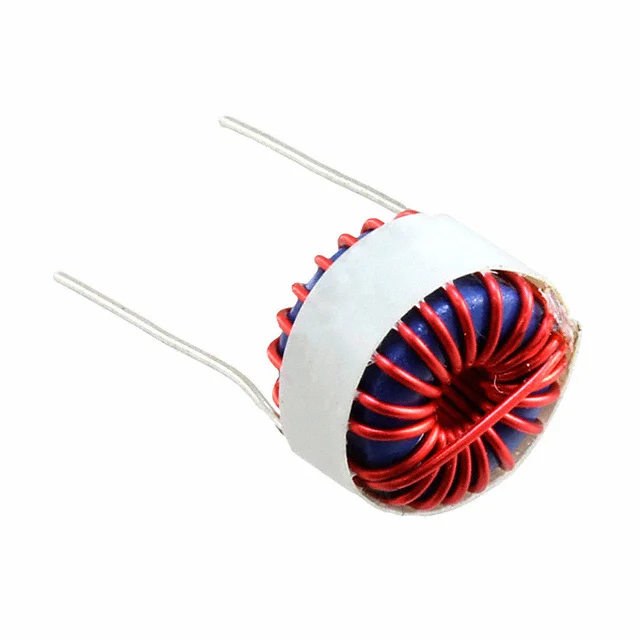

Description
FIXED IND 20UH 1.8A 82.9 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CTX20-1-52LP-R.
CTX20-1-52LP-R has an inductance value of 20 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CTX20-1-52LP-R is rated for 1.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CTX20-1-52LP-R lists a DC resistance of 82.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CTX20-1-52LP-R uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CTX20-1-52LP-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 20 µH |
| Tolerance | ±20% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 82.9mOhm Max |
| Saturation Current | 2.2A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 0.358" Dia (9.10mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 20UH 1.8A 82.9 MOHM TH |
| Series | CTX |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.264" (6.70mm) |
| Features | - |
