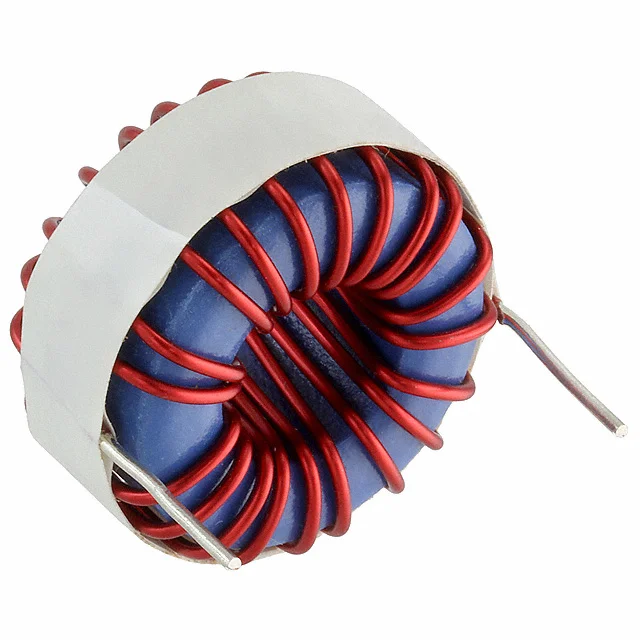

FIXED IND 50UH 7.6A 24.8 MOHM TH
| Inductance | 50 µH |
| Tolerance | ±20% |
| Current Rating | 7.6 A |
| DC Resistance (DCR) | 24.8mOhm Max |
| saturationCurrent | 9.4A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 1.272" Dia (32.30mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 50UH 7.6A 24.8 MOHM TH |
| Series | CTX |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.744" (18.90mm) |
| features | - |
