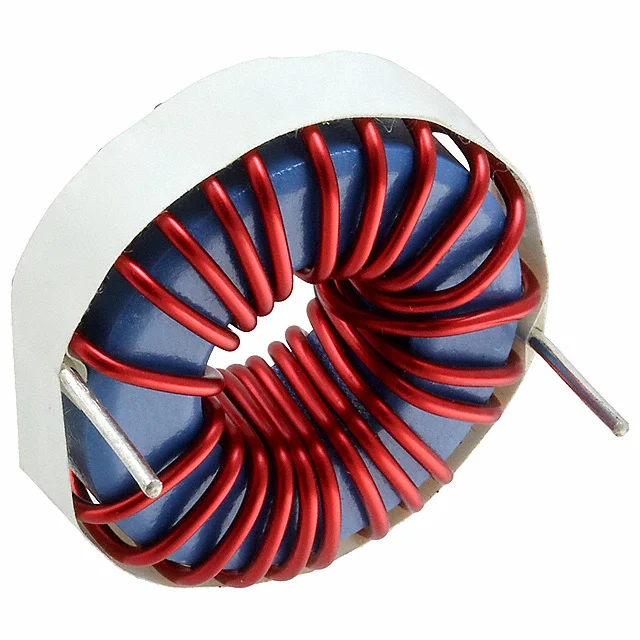

FIXED IND 50UH 10.5A 16.3 MOHM
| Inductance | 50 µH |
| Tolerance | ±20% |
| Current Rating | 10.5 A |
| DC Resistance (DCR) | 16.3mOhm Max |
| saturationCurrent | 10.2A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 1.535" Dia (39.00mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 50UH 10.5A 16.3 MOHM |
| Series | CTX |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.661" (16.80mm) |
| features | - |
