Description

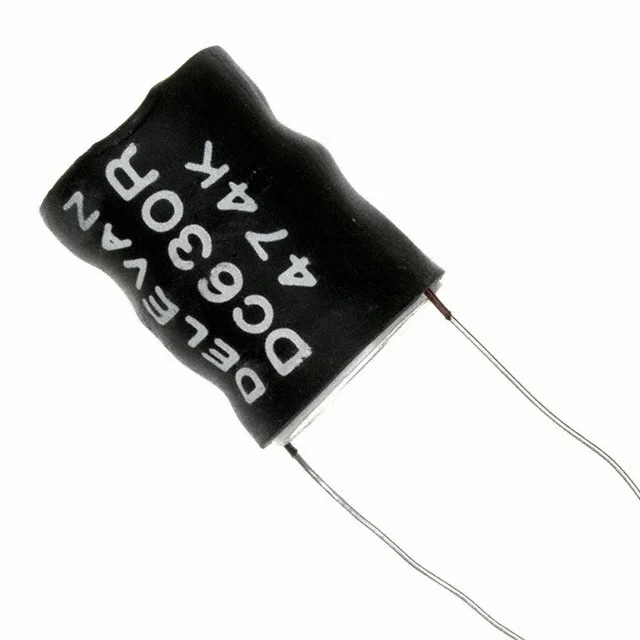

FIXED IND 470UH 1.58A 377 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for DC630R-474K.
DC630R-474K has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
DC630R-474K is rated for 1.58 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DC630R-474K lists a DC resistance of 377mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
DC630R-474K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from DC630R-474K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating | 1.58 A |
| DC Resistance (DCR) | 377mOhm Max |
| Saturation Current | 3.1A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.630" Dia (16.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Delevan |
| Description | FIXED IND 470UH 1.58A 377 MOHM |
| Series | DC630R |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.830" (21.08mm) |
