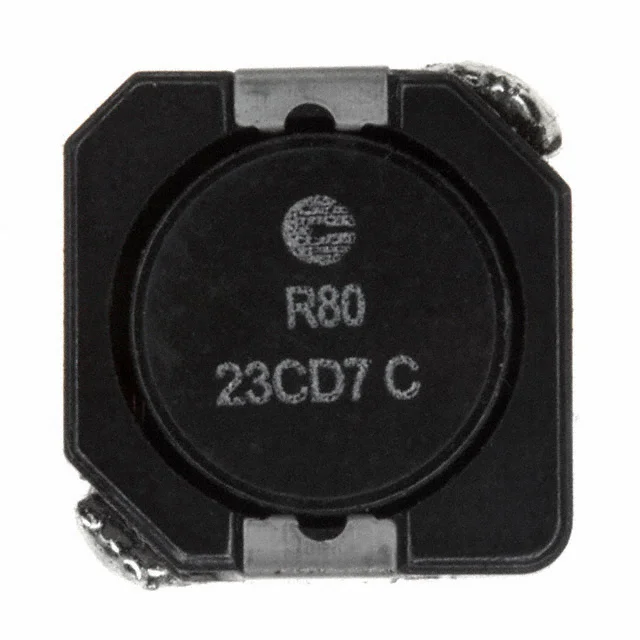

FIXED IND 0.7UH 9.7A 4 MOHM SMD
| Inductance | 0.7 µH |
| Tolerance | ±30% |
| Current Rating | 9.7 A |
| DC Resistance (DCR) | 4mOhm Max |
| saturationCurrent | 13.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 0.7UH 9.7A 4 MOHM SMD |
| Series | DR1050 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
