Description

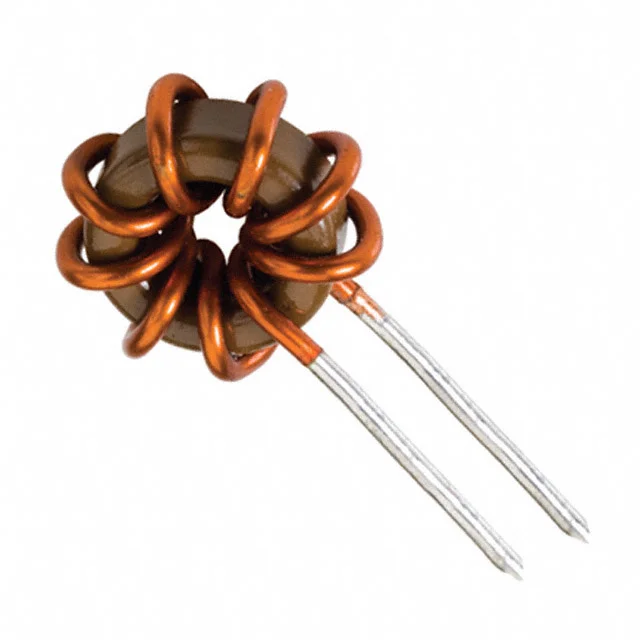

FIXED IND 100UH 1.9A 145 MOHM TH
Specifications
Inductance
100 µH
Current Rating
1.9 A
DC Resistance (DCR)
145mOhm Max
Dimensions
0.660" Dia x 0.360" W (16.76mm x 9.14mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 145mOhm Max |
| saturationCurrent | 1.8A |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Delevan |
| Description | FIXED IND 100UH 1.9A 145 MOHM TH |
| Series | HTPT66 |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
