Description

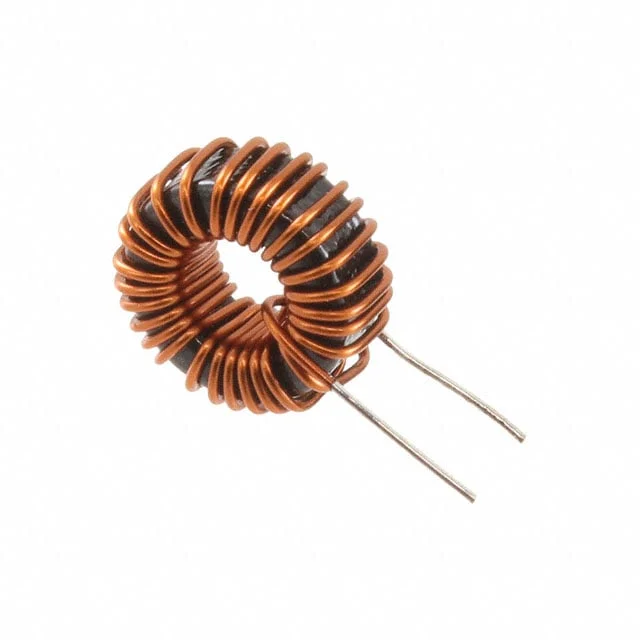

FIXED IND 107UH 3A 53 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SHBC10-0R8A0107V.
SHBC10-0R8A0107V has an inductance value of 107 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SHBC10-0R8A0107V is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SHBC10-0R8A0107V lists a DC resistance of 53mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SHBC10-0R8A0107V uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SHBC10-0R8A0107V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 107 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 53mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" Dia (22.00mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | KEMET |
| Description | FIXED IND 107UH 3A 53 MOHM TH |
| Series | SHBC |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Alloy Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.866" (22.00mm) |
