Description

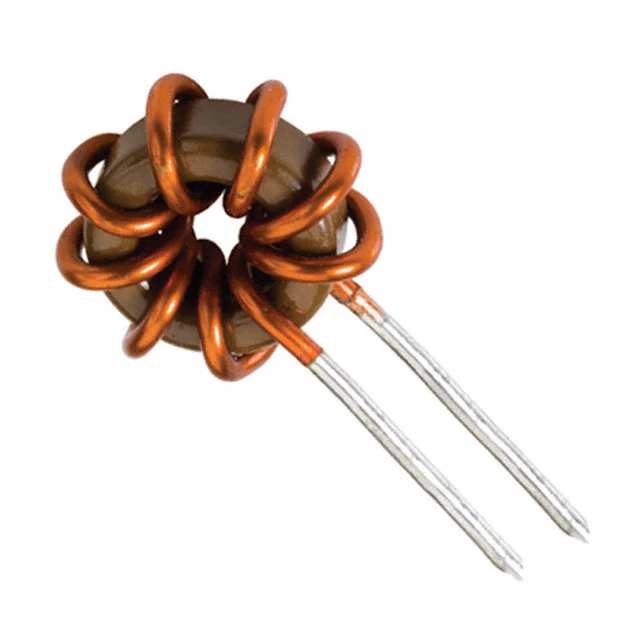

FIXED IND 100UH 1.9A 145 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HTPT66R-104K.
HTPT66R-104K has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HTPT66R-104K is rated for 1.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HTPT66R-104K lists a DC resistance of 145mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HTPT66R-104K uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HTPT66R-104K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 145mOhm Max |
| Saturation Current | 1.8A |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Delevan |
| Description | FIXED IND 100UH 1.9A 145 MOHM TH |
| Series | HTPT66R |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
