Description

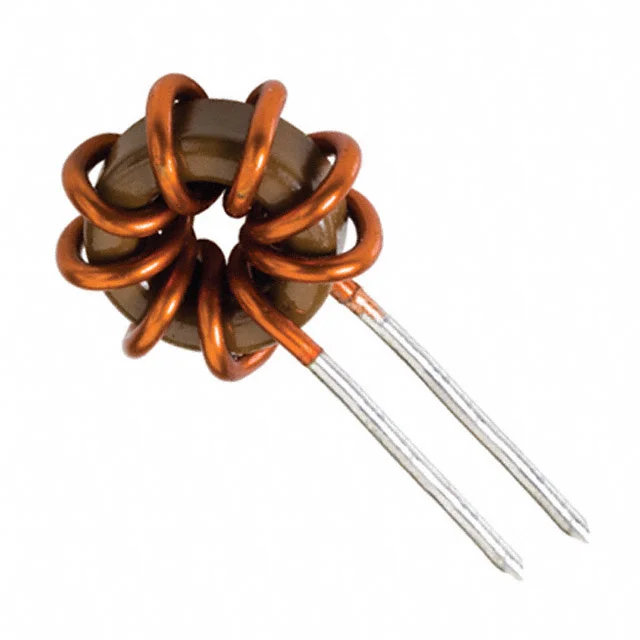

FIXED IND 68UH 2.1A 122 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HTPT66R-683K.
HTPT66R-683K has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HTPT66R-683K is rated for 2.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HTPT66R-683K lists a DC resistance of 122mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HTPT66R-683K uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HTPT66R-683K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 2.1 A |
| DC Resistance (DCR) | 122mOhm Max |
| Saturation Current | 2.3A |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Delevan |
| Description | FIXED IND 68UH 2.1A 122 MOHM TH |
| Series | HTPT66R |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
