Description

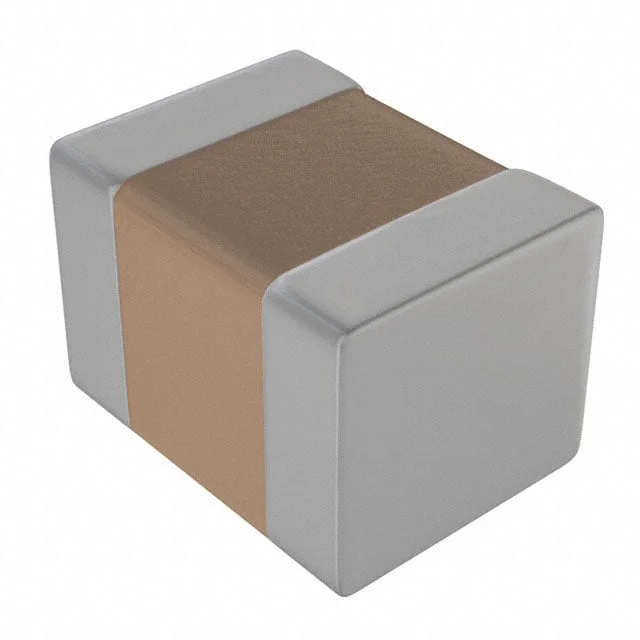

FIXED IND 10UH 900MA 133 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for L1210R100MDWIT.
L1210R100MDWIT has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
L1210R100MDWIT is rated for 900 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
L1210R100MDWIT lists a DC resistance of 133mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
L1210R100MDWIT uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from L1210R100MDWIT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 133mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | KEMET |
| Description | FIXED IND 10UH 900MA 133 MOHM |
| Series | L-DWI |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 23MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.106" (2.70mm) |
